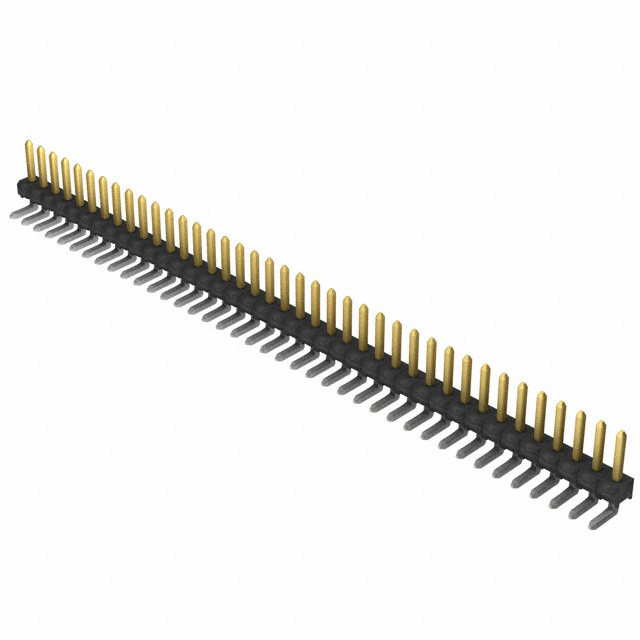

TSW-139-08-S-S-RA

Active

Samtec Inc.

CONN HEADER R/A 39POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TSW Footprint

TSW-139-08-S-S-RA

Active

Samtec Inc.

CONN HEADER R/A 39POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet TSW Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-139-08-S-S-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.119 in
Insulation Height [custom]	3.02 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	39
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-139 Series

Part	Insulation Height	Insulation Height	Insulation Color	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions	Fastening Type	Number of Rows	Connector Type	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Style	Number of Positions Loaded	Shrouding	Contact Finish - Post	Contact Type	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Length - Post	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Termination	Material Flammability Rating	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Insulation Height [z]
Samtec Inc. TSW-139-26-L-S	0.1 in	2.54 mm	Black	Phosphor Bronze	0.1 in	2.54 mm	39	Push-Pull	1	Header	Square	0.23 in	5.84 mm	Board to Board Cable	All	Unshrouded	Tin	Male Pin	11.58 mm	0.456 in	Gold	3.2 mm	0.126 in	-55 °C	125 °C	Through Hole	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0
Samtec Inc. TSW-139-20-T-S
Samtec Inc. TSW-139-08-S-S-RA			Black	Phosphor Bronze	0.1 in	2.54 mm	39	Push-Pull	1	Header	Square	0.23 in	5.84 mm	Board to Board Cable	All	Unshrouded	Tin	Male Pin			Gold	2.29 mm		-55 °C	125 °C	Through Hole Right Angle	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	0.09 "	0.119 in	3.02 mm
Samtec Inc. TSW-139-08-L-D	0.1 in	2.54 mm	Black	Phosphor Bronze	0.1 in	2.54 mm	78	Push-Pull	2	Header	Square	0.23 in	5.84 mm	Board to Board Cable	All	Unshrouded	Tin	Male Pin	13.46 mm	0.53 in	Gold		0.2 in	-55 °C	125 °C	Through Hole	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0				2.54 mm	0.1 in	5.08 mm
Samtec Inc. TSW-139-06-S-S	0.1 in	2.54 mm	Black	Phosphor Bronze	0.1 in	2.54 mm	39	Push-Pull	1	Header	Square			Board to Board Cable	All	Unshrouded	Tin	Male Pin	7.62 mm	0.3 in	Gold		0.095 in	-55 °C	125 °C	Through Hole	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0						2.41 mm
Samtec Inc. TSW-139-23-G-D	0.1 in	2.54 mm	Black	Phosphor Bronze	0.1 in	2.54 mm	78	Push-Pull	2	Header	Square	0.23 in	5.84 mm	Board to Board Cable	All	Unshrouded	Gold	Male Pin	11.3 mm	0.445 "	Gold	2.92 mm		-55 °C	125 °C	Through Hole	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	0.115 in			2.54 mm	0.1 in		3 µin	0.076 µm
Samtec Inc. TSW-139-08-G-S	0.1 in	2.54 mm	Black	Phosphor Bronze	0.1 in	2.54 mm	39	Push-Pull	1	Header	Square	0.23 in	5.84 mm	Board to Board Cable	All	Unshrouded	Gold	Male Pin	13.46 mm	0.53 in	Gold		0.2 in	-55 °C	125 °C	Through Hole	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0						5.08 mm	3 µin	0.076 µm
Samtec Inc. TSW-139-08-G-T
Samtec Inc. TSW-139-25-G-D-RA		5.56 mm	Black	Phosphor Bronze	0.1 in	2.54 mm	78	Push-Pull	2	Header	Square		8.13 mm	Board to Board Cable	All	Unshrouded	Gold	Male Pin			Gold	2.54 mm		-55 °C	125 °C	Through Hole Right Angle	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	0.1 in			2.54 mm	0.1 in		3 µin	0.076 µm	0.32 in	0.219 in
Samtec Inc. TSW-139-14-S-S	0.1 in	2.54 mm	Black	Phosphor Bronze	0.1 in	2.54 mm	39	Push-Pull	1	Header	Square		8.13 mm	Board to Board Cable	All	Unshrouded	Tin	Male Pin	13.46 mm	0.53 in	Gold	2.79 mm	0.11 in	-55 °C	125 °C	Through Hole	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT)	Solder	UL94 V-0									0.32 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.76
		10	$ 5.23
		100	$ 4.61
		500	$ 3.92
		1000	$ 3.34

Description

General part information

TSW-139 Series

Connector Header Through Hole, Right Angle 39 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

TSW Footprint

Datasheet
