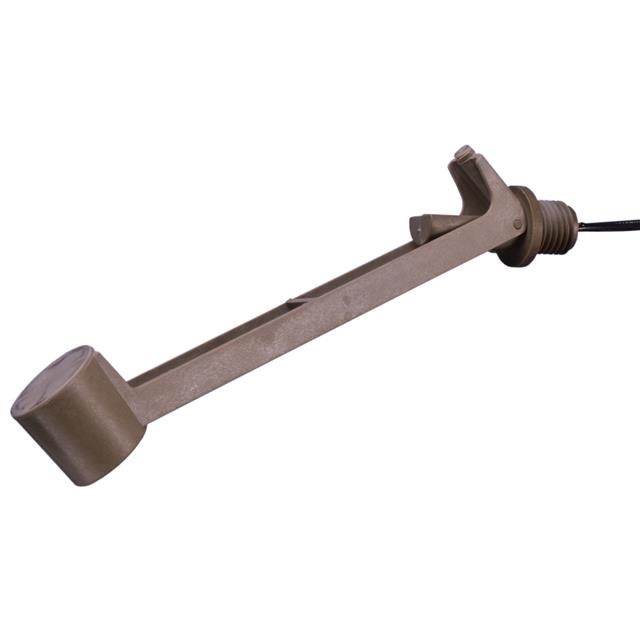

RSF26Y100RF

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	RSF26Y100RF

Current	600 mA
Material - Housing & Prism	Polyphenylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.8
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC
Switch Actuation Level	0.945 in
Switch Actuation Level	24 mm
Type	Liquid
Voltage Rating	120 VDC, 240 VAC

Part	Minimum Liquid Specific Gravity [Min]	Voltage Rating	Mounting Type	Material - Housing & Prism	Switch Actuation Level	Switch Actuation Level	Current	Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration
Sensata Technologies RSF26Y100RF	0.8	120 VDC 240 VAC	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	0.945 in	24 mm	600 mA	Liquid	-10 °C	120 °C	SPST-NC
Sensata Technologies RSF26HFP	0.8	300 VDC 300 VAC	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	0.945 in	24 mm	1 A	Liquid	-10 °C	120 °C	SPST-NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 36.11

General part information

Liquid Level Sensor Switch (Single Float) SPST-NC Output Panel Mount, M16x2 Thread
