CYT4DNJBRCQ1BZSGST

Active

Infineon Technologies

MCU 32-BIT ARM CORTEX M0+/ARM CORTEX M7F RISC 6464KB FLASH 3.3V/5V T/R

Deep-Dive with AI

Search across all available documentation for this part.

CYT4DNJBRCQ1BZSGST

Active

Infineon Technologies

MCU 32-BIT ARM CORTEX M0+/ARM CORTEX M7F RISC 6464KB FLASH 3.3V/5V T/R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CYT4DNJBRCQ1BZSGST

Connectivity	Temp Sensor, DMA, I2S, LVD, WDT
Core Processor	ARM® Cortex®-M7F, ARM® Cortex®-M0+
Core Size	32-Bit Quad-Core
EEPROM Size	128 K
Mounting Type	Surface Mount
Number of I/O	168 I/O
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C

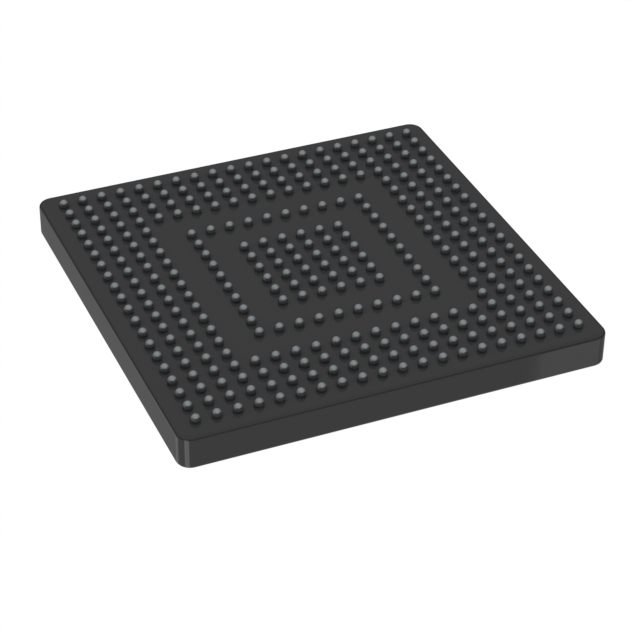

Package / Case	327-BGA
Peripherals	DMA, Temp Sensor, I2S, WDT, LVD
Program Memory Size	6.188 MB
Program Memory Type	FLASH
RAM Size	640 K
Speed	320 MHz
Supplier Device Package	327-BGA
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

CYT4DNJ Series

Part	Package / Case	RAM Size	Program Memory Type	Peripherals	Speed	Supplier Device Package	Core Size	Mounting Type	Number of I/O	EEPROM Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Connectivity	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Size	Core Processor	Oscillator Type	Speed	Data Converters
Infineon Technologies CYT4DNJBRCQ1BZSGS	327-BGA	640 K	FLASH	DMA I2S LVD Temp Sensor WDT	320 MHz	327-BGA	32-Bit Quad-Core	Surface Mount	168 I/O	128 K	2.7 V	5.5 V	DMA I2S LVD Temp Sensor WDT	105 °C	-40 °C	6.188 MB	ARM® Cortex®-M0+ ARM® Cortex®-M7F
Infineon Technologies CYT4DNJBBCQ1BZSGS	327-LFBGA	640 K	FLASH	DMA I2S LVD Temp Sensor WDT	100 MHz	327-FBGA (17x17)	32-Bit Tri-Core	Surface Mount	168 I/O	128 K	2.7 V	5.5 V	CANbus Ethernet I2C LINbus SPI UART/USART	105 °C	-40 °C	6.19 MB	ARM® Cortex®-M0+ ARM® Cortex®-M7F	External Internal	320 MHz	12 b 48
Infineon Technologies CYT4DNJBHCQ1BZSGST	327-LFBGA	640 K	FLASH	DMA I2S LVD Temp Sensor WDT	100 MHz	327-FBGA (17x17)	32-Bit Tri-Core	Surface Mount	168 I/O	128 K	2.7 V	5.5 V	CANbus Ethernet I2C LINbus SPI UART/USART	105 °C	-40 °C	6.19 MB	ARM® Cortex®-M0+ ARM® Cortex®-M7F	External Internal	320 MHz	12 b 48
Infineon Technologies CYT4DNJBRCQ1BZSGST	327-BGA	640 K	FLASH	DMA I2S LVD Temp Sensor WDT	320 MHz	327-BGA	32-Bit Quad-Core	Surface Mount	168 I/O	128 K	2.7 V	5.5 V	DMA I2S LVD Temp Sensor WDT	105 °C	-40 °C	6.188 MB	ARM® Cortex®-M0+ ARM® Cortex®-M7F
Infineon Technologies CYT4DNJBJCQ1BZSGST	327-LFBGA	640 K	FLASH	DMA I2S LVD Temp Sensor WDT	100 MHz	327-FBGA (17x17)	32-Bit Tri-Core	Surface Mount	168 I/O	128 K	2.7 V	5.5 V	CANbus Ethernet I2C LINbus SPI UART/USART	105 °C	-40 °C	6.19 MB	ARM® Cortex®-M0+ ARM® Cortex®-M7F	External Internal	320 MHz	12 b 48

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	700	$ 32.24

Description

General part information

CYT4DNJ Series

ARM® Cortex®-M0+, ARM® Cortex®-M7F Traveo™ T2G Microcontroller IC 32-Bit Quad-Core 320MHz 6.188MB (6.188M x 8) FLASH 327-BGA
