EN2C2M20G3W
ActiveSwitchcraft Inc.

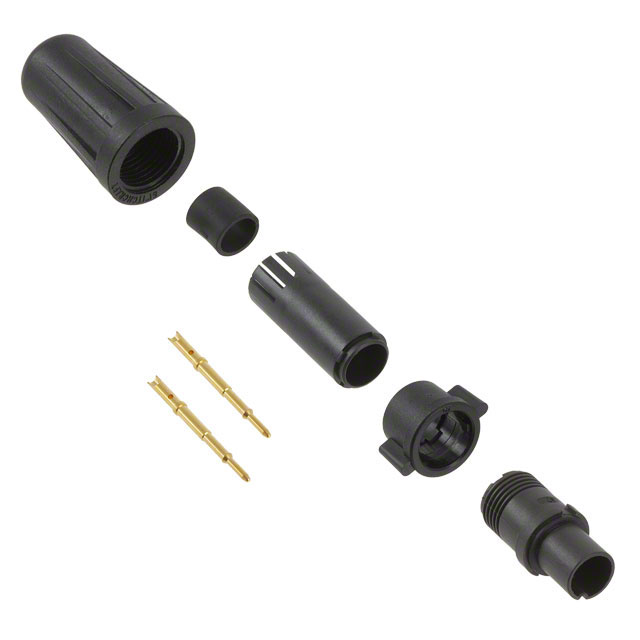

CONN PLUG MALE 2POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN2C2M20G3W
ActiveSwitchcraft Inc.
CONN PLUG MALE 2POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2C2M20G3W | EN2C2M Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 2.54 - 3.56 mm |
| Cable Opening | - | 0.1 - 0.14 in |
| Cable Opening [Max] [custom] | 0.22 in | 0.22 in |
| Cable Opening [Max] [custom] | 5.59 mm | 5.59 mm |
| Cable Opening [Min] [custom] | 0.18 in | 0.18 in |
| Cable Opening [Min] [custom] | 4.57 mm | 4.57 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 3.5 A | 3.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell, Winged | Coupling Nut, Backshell, Winged |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp, Solder Cup | Crimp, Solder Cup |
| Voltage Rating | 250 VAC | 250 VAC |
EN2C2M Series
CONN PLUG MALE 2POS GOLD CRIMP
| Part | Contact Finish - Mating | Mounting Type | Features | Insert Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Termination | Backshell Material, Plating | Ingress Protection | Current Rating (Amps) | Material Flammability Rating | Orientation | Fastening Type | Shielding | Number of Positions | Contact Material | Applications | Voltage Rating | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Color | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2C2M20G3 | Gold | Free Hanging (In-Line) | Backshell, Coupling Nut | Elastomer | Male Pins, Plug | 85 °C | -40 °C | Plastic | Crimp, Solder Cup | Thermoplastic | IP66, IP67, IP68 | 3.5 A | UL94 V-0 | Keyed | Bayonet Lock | Unshielded | 2 | Copper Alloy | Communication Systems, Industrial, Marine, Medical | 250 VAC | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | Black | ||
Switchcraft Inc. EN2C2M20G1W | Gold | Free Hanging (In-Line) | Backshell, Coupling Nut, Winged | Elastomer | Male Pins, Plug | 85 °C | -40 °C | Plastic | Crimp, Solder Cup | Thermoplastic | IP66, IP67, IP68 | 3.5 A | UL94 V-0 | Keyed | Bayonet Lock | Unshielded | 2 | Copper Alloy | Communication Systems, Industrial, Marine, Medical | 250 VAC | Black | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in | ||||
Switchcraft Inc. EN2C2M20G3W | Gold | Free Hanging (In-Line) | Backshell, Coupling Nut, Winged | Elastomer | Male Pins, Plug | 85 °C | -40 °C | Plastic | Crimp, Solder Cup | Thermoplastic | IP66, IP67, IP68 | 3.5 A | UL94 V-0 | Keyed | Bayonet Lock | Unshielded | 2 | Copper Alloy | Communication Systems, Industrial, Marine, Medical | 250 VAC | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | Black | ||
Switchcraft Inc. EN2C2M20G1 | Gold | Free Hanging (In-Line) | Backshell, Coupling Nut | Elastomer | Male Pins, Plug | 85 °C | -40 °C | Plastic | Crimp, Solder Cup | Thermoplastic | IP66, IP67, IP68 | 3.5 A | UL94 V-0 | Keyed | Bayonet Lock | Unshielded | 2 | Copper Alloy | Communication Systems, Industrial, Marine, Medical | 250 VAC | Black | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in | ||||
Switchcraft Inc. EN2C2M20DCW | Gold | Free Hanging (In-Line) | Backshell, Coupling Nut, Winged | Elastomer | Male Pins, Plug | 85 °C | -40 °C | Plastic | Crimp, Solder Cup | Thermoplastic | IP66, IP67, IP68 | 3.5 A | UL94 V-0 | Keyed | Bayonet Lock | Unshielded | 2 | Copper Alloy | Communication Systems, Industrial, Marine, Medical | 250 VAC | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 5.16 | |
Description
General part information
EN2C2M Series
2 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
