1393315-2

Active

TE Connectivity AMP Connectors

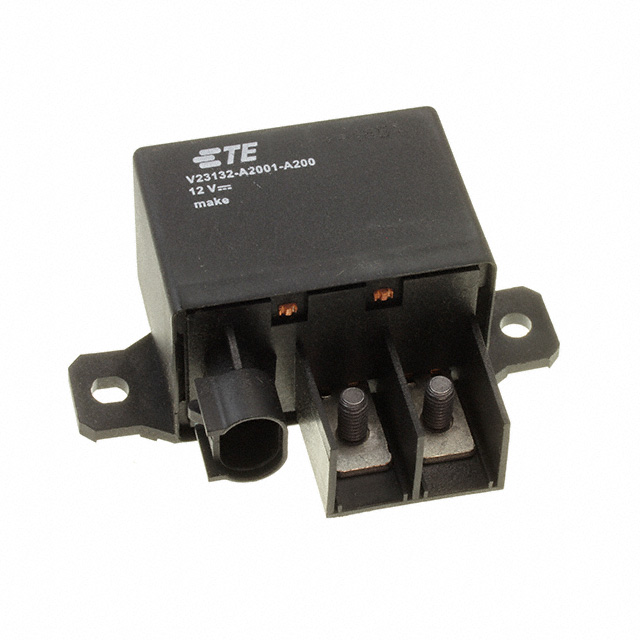

RELAY AUTO SPST-NO 130A 12V

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

RELAY AUTO SPST-NO 130A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY AUTO SPST-NO 130A 12V

Part	Contact Material	Must Operate Voltage	Operate Time	Contact Rating (Current)	Must Release Voltage	Coil Resistance	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Termination Style	Contact Form	Mounting Type	Coil Voltage	Coil Power	Switching Voltage	Coil Current	Features
TE Connectivity AMP Connectors 1393315-2	Silver Tin Oxide (AgSnO)	7.2 VDC	25 ms	130 A	1.2 VDC	37 Ohms	8 ms	125 °C	-40 °C	Non Latching	Screw Terminal	SPST-NO (1 Form A)	Chassis Mount	12 VDC	3.9 W
TE Connectivity AMP Connectors 1-1393315-1	Silver Tin Oxide (AgSnO)	14.4 VDC	25 ms	130 A	2.4 VDC	141 Ohms	8 ms	125 °C	-40 °C	Non Latching	Screw Terminal	SPST-NO (DM) (1 Form X)	Chassis Mount	24 VDC	4.1 W	24 VDC	170.2 mA	IP67 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTO SPST-NO 130A 12V

Technical documentation and resources
