C4077A.41.10

Active

Prysmian Group

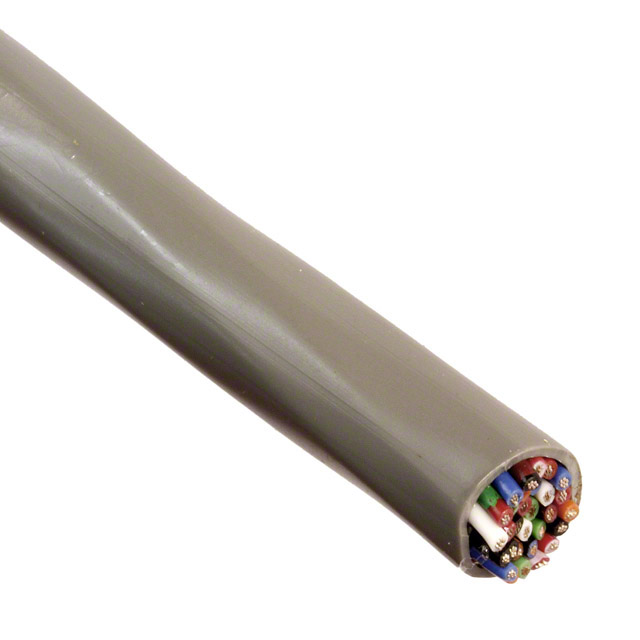

CABLE 30COND 22AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 30COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C4077A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	9.88 mm
Jacket (Insulation) Diameter [diameter]	0.389 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	30
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Conductor Insulation	Length	Length	Voltage	Number of Conductors	Conductor Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Cable Type	Jacket (Insulation) Material
Prysmian Group C4077A.41.10	-20 C	80 C	7	30 AWG	Gray	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	300 V	30	Copper Tinned	Communication Control	9.88 mm	0.389 in	22 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Conductor Multi-Conductor Cable Gray 22 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
