30890 010250

Active

Belden Inc.

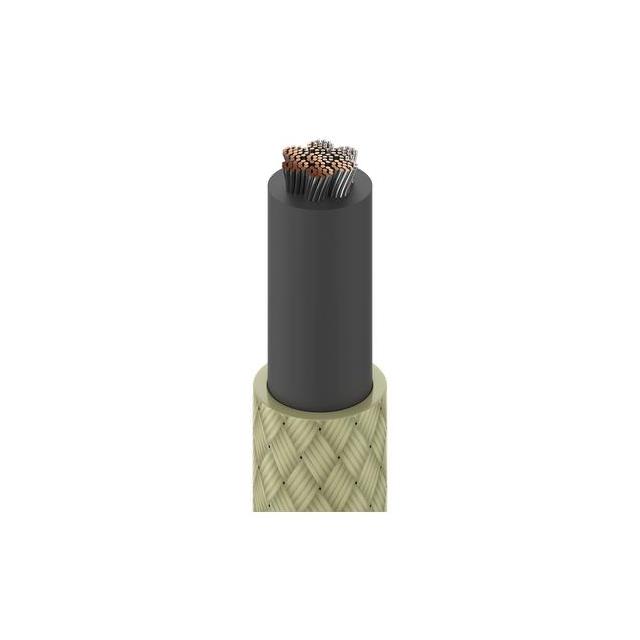

HOOK-UP STRND 1/0AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 1/0AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	30890 010250

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	262
Conductor Strand [custom]	24 AWG
Jacket (Insulation) Diameter [diameter]	17.02 mm
Jacket (Insulation) Diameter [diameter]	0.67 in
Jacket (Insulation) Material	Glass, Silicone
Jacket (Insulation) Thickness	2.03 mm
Jacket (Insulation) Thickness	0.08 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style 3126
Voltage	600 V
Wire Gauge	44 AWG

Part	Wire Gauge	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket Color	Length	Length
Belden Inc. 30890 009100	44 AWG	UL Style 3126	262	24 AWG	17.02 mm	0.67 in	Copper Tinned	200 °C	-70 °C	600 V	Hook-Up	Glass Silicone	2.03 mm	0.08 in	30.5 m	100 ft
Belden Inc. 30890 010250	44 AWG	UL Style 3126	262	24 AWG	17.02 mm	0.67 in	Copper Tinned	200 °C	-70 °C	600 V	Hook-Up	Glass Silicone	2.03 mm	0.08 in			Black	3000 "	76.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 25.65

General part information

1/0 AWG Hook-Up Wire 262/24 Black 600V 250.0' (76.2m)
