H3AAS-2606G
ActiveAssmann WSW Components
IDC CBL - HHSC26S/AE26G/HHSC26S
Deep-Dive with AI
Search across all available documentation for this part.
H3AAS-2606G
ActiveAssmann WSW Components
IDC CBL - HHSC26S/AE26G/HHSC26S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H3AAS-2606G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Socket |
| Contact Finish | Tin |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.29 | |
| 10 | $ 1.05 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.86 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.70 | |||
| 2500 | $ 0.64 | |||
Description
General part information
H3AAS-26 Series

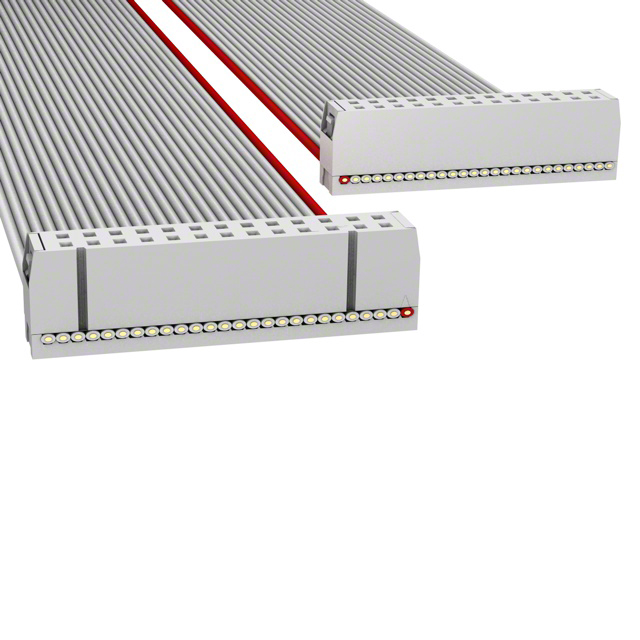

26 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
