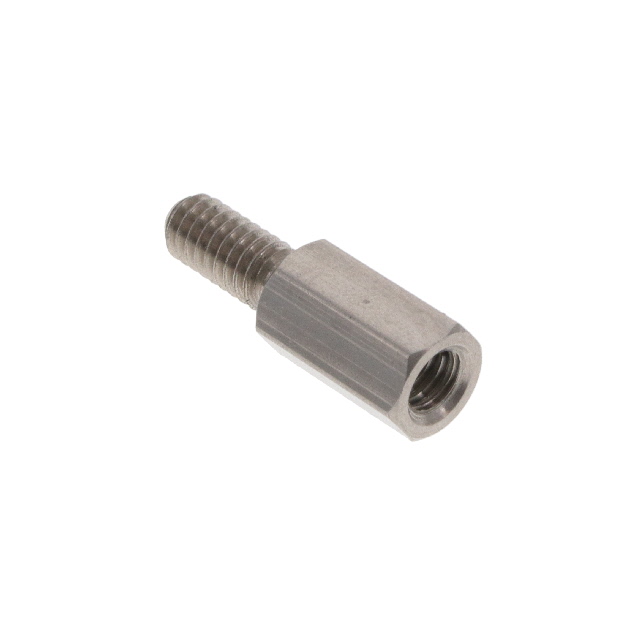

4533-832-SS
ActiveRAF Electronic Hardware
1/4 HEX X 7/16 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4533-832-SS
ActiveRAF Electronic Hardware
1/4 HEX X 7/16 LENGTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4533-832-SS |
|---|---|
| Between Board Height | 0.438 in |
| Between Board Height | 11.11 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Female |
| Length - Overall [x] | 0.438 in |
| Length - Overall [x] | 11.11 mm |
| Material | Stainless Steel |
| Screw, Thread Size | #8-32 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.58 | |
| 5 | $ 2.19 | |||
| 10 | $ 2.06 | |||
| 25 | $ 1.90 | |||
| 50 | $ 1.80 | |||
Description
General part information
4533-832 Series
Hex Standoff Threaded #8-32 Stainless Steel 0.438" (11.11mm)
