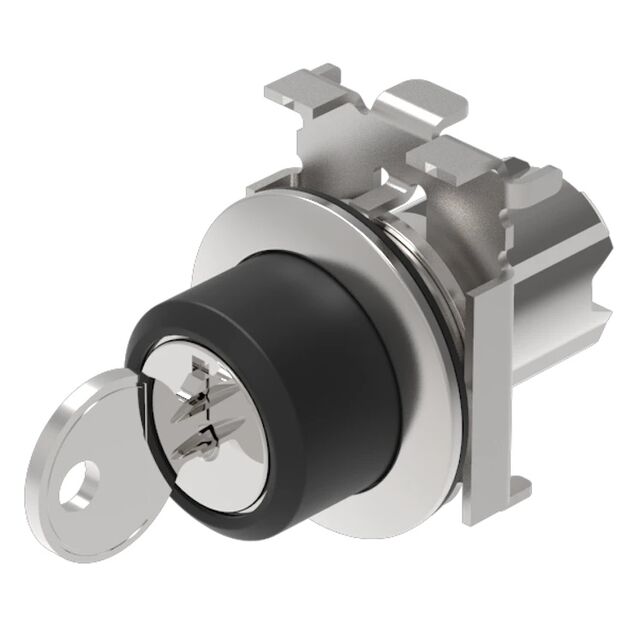

45-290H.4F00.111

Active

EAO

CONFIG SW BODY KEYLOCK NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY KEYLOCK NON-ILLUM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Trimmer Resistors - SMD

Technical documentation and resources

Specification	45-290H.4F00.111	45-290H Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Keylock	Keylock
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	30.5 mm	22.3 - 30.5 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Maintained	Maintained

Part	Type	Actuator Type	Requires	Illumination	Panel Cutout Dimensions	(Select First, Then Apply Filters) Compatible Series
EAO 45-290H.1000.111	Maintained	Keylock	Contact Block(s)	Non-Illuminated	22.3 mm	45, EAO
EAO 45-290H.3000.111	Maintained	Keylock	Contact Block(s)	Non-Illuminated	22.3 mm	45, EAO
EAO 45-290H.4F00.111	Maintained	Keylock	Contact Block(s)	Non-Illuminated	30.5 mm	45, EAO
