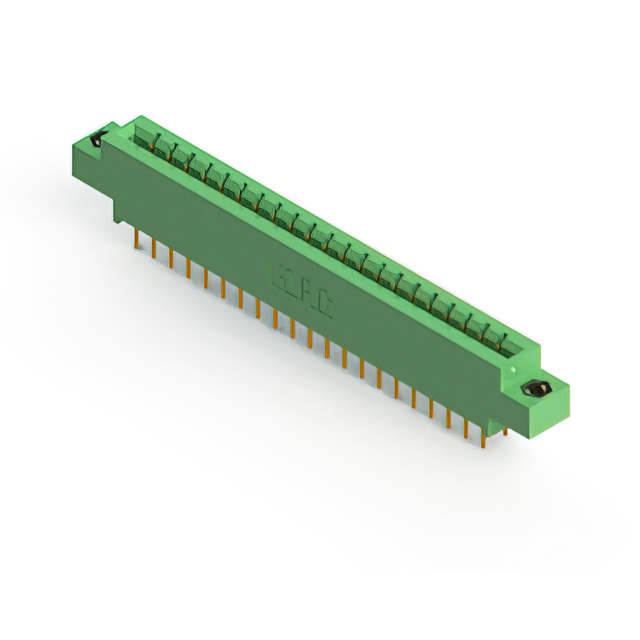

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
333-042-542-808
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-042-542-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
333-042 Series
...
| Part | Read Out | Contact Type | Termination | Card Type | Number of Rows | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Gender | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination Rows | Color | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Cantilever | Solder | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Female | Gold | 10 Áin | 0.25 Ám | Through Hole | Copper Alloy | -40 °C | 105 ░C | 42 | 2 | Green | 0.156 in | 3.96 mm | |||
EDAC Inc. | Single | Cantilever | Wire Wrap | Non Specified - Single Edge | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Female | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 42 | 1 | Green | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | 42 |
EDAC Inc. | Dual | Cantilever | Solder | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | Female | Gold | 10 Áin | 0.25 Ám | Through Hole | Copper Alloy | -40 °C | 105 ░C | 42 | 2 | Green | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | |
EDAC Inc. | Dual | Cantilever | Wire Wrap | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 10 Áin | 0.25 Ám | Through Hole | Copper Alloy | -40 °C | 105 ░C | 42 | 2 | Green | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Single | Cantilever | Wire Wrap | Non Specified - Single Edge | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Female | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 42 | 1 | Green | 0.156 in | 3.96 mm | 42 | ||
EDAC Inc. | Dual | Cantilever | Wire Wrap | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Female | Gold | 10 Áin | 0.25 Ám | Through Hole | Copper Alloy | -40 °C | 105 ░C | 42 | 2 | Green | 0.156 in | 3.96 mm | |||
EDAC Inc. | Dual | Cantilever | Solder | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Female | Gold | 10 Áin | 0.25 Ám | Through Hole | Copper Alloy | -40 °C | 105 ░C | 42 | 2 | Green | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | |
EDAC Inc. | Single | Cantilever | Wire Wrap | Non Specified - Single Edge | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Flush Mount | Female | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 42 | 1 | Green | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | 42 |
EDAC Inc. | Dual | Cantilever | Solder | Non Specified - Dual Edge | 2 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Female | Gold | 10 Áin | 0.25 Ám | Through Hole | Copper Alloy | -40 °C | 105 ░C | 42 | 2 | Green | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | |
EDAC Inc. | Single | Cantilever | Wire Wrap | Non Specified - Single Edge | 1 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 42 | 1 | Green | 0.156 in | 3.96 mm | 42 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
