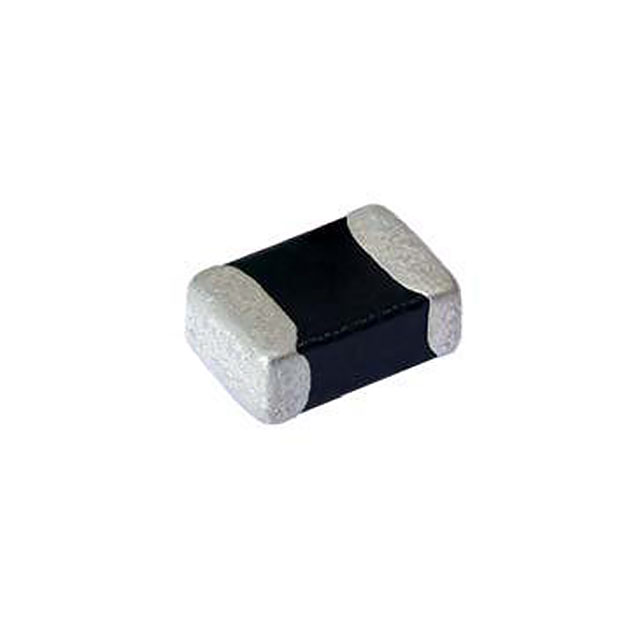

MLV0603E31403T

Active

Vishay Beyschlag/Draloric/BC Components

VARISTOR 25.5V 30A 0603

Search across all available documentation for this part.

Active

Vishay Beyschlag/Draloric/BC Components

VARISTOR 25.5V 30A 0603

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MLV0603E31403T	MLV0603 Series

Capacitance @ Frequency	225 pF	150 - 825 pF
Current - Surge	30 A	30 A
Energy	0.1 J	0.1 J
Maximum AC Volts [Max]	14 V	4 - 25 V
Maximum DC Volts [Max]	18 V	5.6 - 30 V
Mounting Type	Surface Mount	Surface Mount, Surface Mount, MLCV
Number of Circuits	1	1
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Varistor Voltage (Max) [Max]	28 V	9.3 - 46 V
Varistor Voltage (Min) [Min]	23 V	7.1 - 37 V
Varistor Voltage (Typ)	25.5 V	8.2 - 41.5 V

VARISTOR 41.5V 30A 0603

Part	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Min) [Min]	Maximum AC Volts [Max]	Varistor Voltage (Typ)	Energy	Mounting Type	Current - Surge	Package / Case	Number of Circuits	Varistor Voltage (Max) [Max]	Maximum DC Volts [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Vishay Beyschlag/Draloric/BC Components MLV0603E32503T	150 pF	125 °C	-55 °C	37 V	25 V	41.5 V	0.1 J	Surface Mount	30 A	0603 (1608 Metric)	1	46 V	30 V
Vishay Beyschlag/Draloric/BC Components MLV0603E31103T	425 pF			16 V	11 V	18 V	0.1 J	Surface Mount, MLCV	30 A	0603 (1608 Metric)	1	20 V	14 V	-55 °C	125 °C
Vishay Beyschlag/Draloric/BC Components MLV0603E30403T	825 pF	125 °C	-55 °C	7.1 V	4 V	8.2 V	0.1 J	Surface Mount	30 A	0603 (1608 Metric)	1	9.3 V	5.6 V
Vishay Beyschlag/Draloric/BC Components MLV0603E30703T	550 pF	125 °C	-55 °C	11 V	7 V	12.5 V	0.1 J	Surface Mount	30 A	0603 (1608 Metric)	1	14 V	9 V
Vishay Beyschlag/Draloric/BC Components MLV0603E31403T	225 pF	125 °C	-55 °C	23 V	14 V	25.5 V	0.1 J	Surface Mount	30 A	0603 (1608 Metric)	1	28 V	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25.5 V 30 A Varistor 1 Circuit Surface Mount 0603 (1608 Metric)
