928205-2

Active

TE Connectivity AMP Connectors

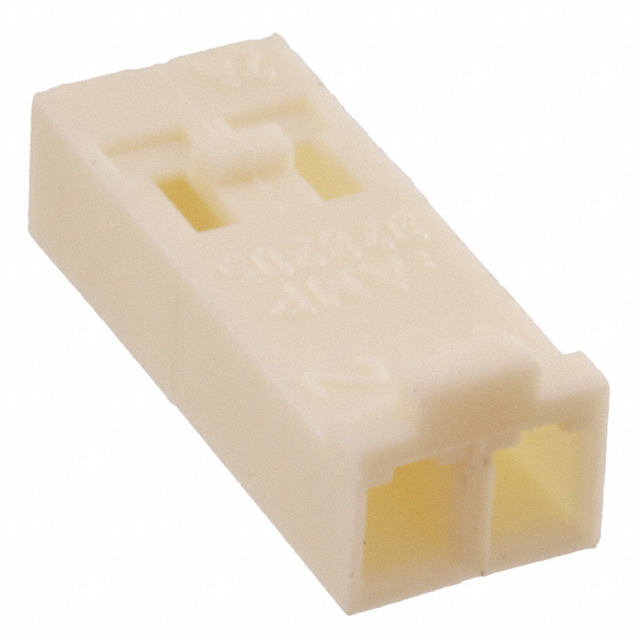

CONN RCPT HSG 2POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	928205-2	928205 Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polybutylene Terephthalate (PBTP)	Polybutylene Terephthalate (PBTP)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 8
Number of Rows	1	1
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

CONN RCPT HSG 2POS 2.54MM

Part	Note	Contact Termination	Contact Type	Mounting Type	Number of Positions	Insulation Material	Connector Type	Number of Rows	Color	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 928205-2	Contacts Not Included	Crimp	Female Socket	Free Hanging (In-Line)	2	Polybutylene Terephthalate (PBTP)	Receptacle	1	Natural	2.54 mm	0.1 in
TE Connectivity AMP Connectors 928205-8	Contacts Not Included	Crimp	Female Socket	Free Hanging (In-Line)	8	Polybutylene Terephthalate (PBTP)	Receptacle	1	Natural	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Natural 0.100" (2.54mm)
