887-040-541-802

Active

EDAC Inc.

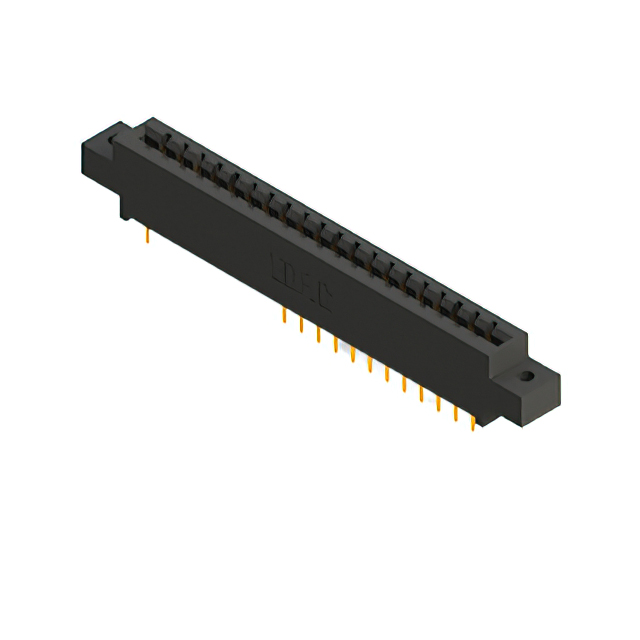

CONN EDGE DUAL FMALE 40POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-040-541-802

Active

EDAC Inc.

CONN EDGE DUAL FMALE 40POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-040-541-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	40
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

887-040 Series

...

Part	Contact Material	Material - Insulation	Number of Rows	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Termination	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Type	Contact Type	Read Out	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Gender	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 887-040-520-201	Copper Alloy	Polyphenylene Sulfide (PPS)	2	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Solder	2	20	20	20	Non Specified - Dual Edge	Cantilever	Dual	0.156 in	3.96 mm	Through Hole	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C
EDAC Inc. 887-040-524-103	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Solder	1				Non Specified - Single Edge	Cantilever	Single	0.156 in	3.96 mm	Through Hole	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C	40	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 887-040-555-207	Copper Alloy	Polyphenylene Sulfide (PPS)	2	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Solder	2	20	20	20	Non Specified - Dual Edge	Cantilever	Dual	0.156 in	3.96 mm	Board Edge Straddle Mount	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C			Flush Mount M3 Threaded Insert Top Opening		Card Extender
EDAC Inc. 887-040-520-202	Copper Alloy	Polyphenylene Sulfide (PPS)	2	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Solder	2	20	20	20	Non Specified - Dual Edge	Cantilever	Dual	0.156 in	3.96 mm	Through Hole	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C		0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 887-040-521-101	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Solder	1				Non Specified - Single Edge	Cantilever	Single	0.156 in	3.96 mm	Through Hole	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C	40
EDAC Inc. 887-040-542-807	Copper Alloy	Polyphenylene Sulfide (PPS)	2	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Wire Wrap	2	20	20	20	Non Specified - Dual Edge	Cantilever	Dual	0.156 in	3.96 mm	Through Hole	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C			M3 Threaded Insert Top Mount Opening
EDAC Inc. 887-040-541-802	Copper Alloy	Polyphenylene Sulfide (PPS)	2	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Wire Wrap	2	20	20	20	Non Specified - Dual Edge	Cantilever	Dual	0.156 in	3.96 mm	Through Hole	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C						3.25 mm	0.128 in
EDAC Inc. 887-040-521-104	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Solder	1				Non Specified - Single Edge	Cantilever	Single	0.156 in	3.96 mm	Through Hole	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C	40	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 887-040-555-202	Copper Alloy	Polyphenylene Sulfide (PPS)	2	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Solder	2	20	20	20	Non Specified - Dual Edge	Cantilever	Dual	0.156 in	3.96 mm	Board Edge Straddle Mount	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C		0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Card Extender
EDAC Inc. 887-040-541-101	Copper Alloy	Polyphenylene Sulfide (PPS)	1	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	40	Wire Wrap	1				Non Specified - Single Edge	Cantilever	Single	0.156 in	3.96 mm	Through Hole	Gold	Female	10 Áin	0.25 Ám	125 °C	-40 °C	40
