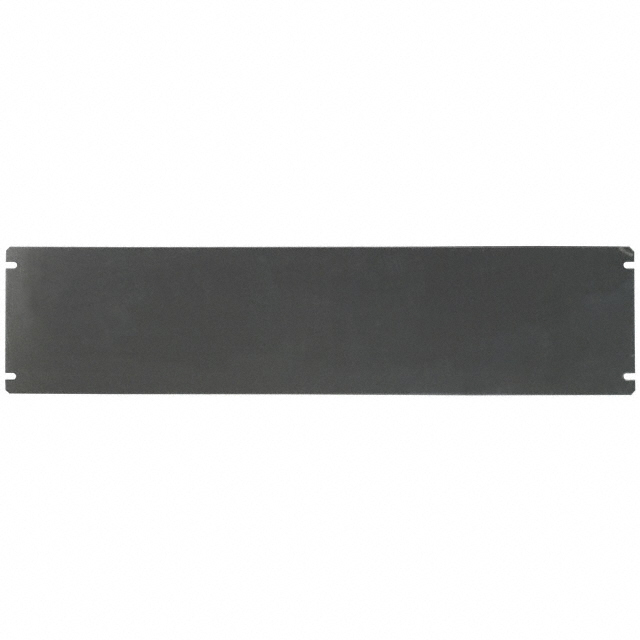

1434-20

Active

Hammond Manufacturing

COVER FOR PART #1444-20

Search across all available documentation for this part.

Active

Hammond Manufacturing

COVER FOR PART #1444-20

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1434-20	1434 Series

Color	Unpainted	Unpainted
For Use With/Related Products	1444 Series	1444 Series
Material	Metal, Aluminum	Metal, Aluminum
Size / Dimension	-	304.8 - 431.8 mm
Size / Dimension	-	1.3 mm
Size / Dimension [x]	4 in	3.5 - 17 "
Size / Dimension [x]	101.6 mm	88.89 - 431.8 mm
Size / Dimension [y]	152.4 mm	101.6 - 431.8 mm
Size / Dimension [y]	6 "	4 - 228.6 "
Size / Dimension [z]	1.02 mm	0.04 - 1.3 mm
Size / Dimension [z]	0.04 in	0.04 - 1.02 in
Type	Cover, Lid	Cover, Lid

BOTTOM PLATE FOR ALUM CHASSIS

Part	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Material	Type	For Use With/Related Products	Size / Dimension [y]	Size / Dimension [z]
Hammond Manufacturing 1434-178	Unpainted	8 "	203.2 mm	1.3 mm	0.051 in	17 "	431.8 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-30	Unpainted							Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-1210	Unpainted	10 in	254 mm	1.3 mm	0.051 in	12 "	304.8 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-4535	Unpainted	3.5 in	88.89 mm	1.02 mm	0.04 in	4.5 in	114.3 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-10	Unpainted	4 in	101.6 mm	1.02 mm	0.04 in	8 in	203.2 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-18	Unpainted	5 in			0.04 in, 1.02 mm	13.5 "		Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-1713	Unpainted	13 in	330.2 mm		0.051 in	17 "		Aluminum, Metal	Cover, Lid	1444 Series	431.8 mm	1.3 mm
Hammond Manufacturing 1434-1715	Unpainted							Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-108	Unpainted	8 "	203.2 mm	1.02 mm	0.04 in	10 in	254 mm	Aluminum, Metal	Cover, Lid	1444 Series
Hammond Manufacturing 1434-20	Unpainted	4 in	101.6 mm	1.02 mm	0.04 in	6 "	152.4 mm	Aluminum, Metal	Cover, Lid	1444 Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Metal, Aluminum Cover, Lid 4.000" L x 6.000" W x 0.040" H (101.60mm x 152.40mm x 1.02mm) Unpainted
