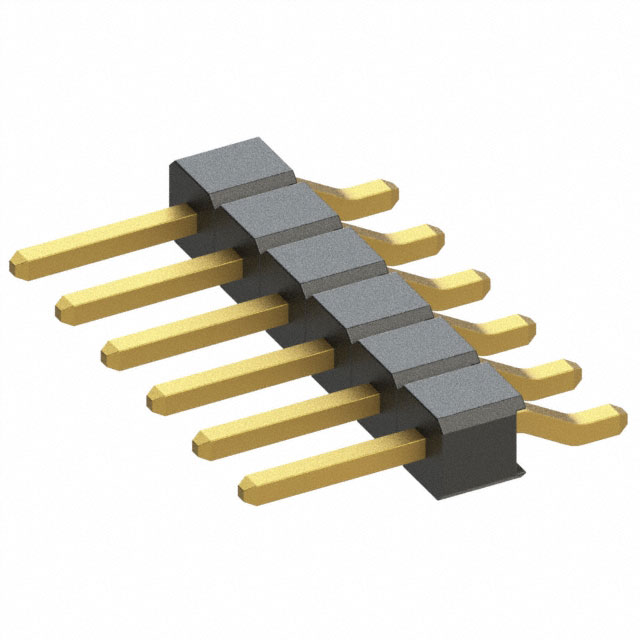

Specification	M22-5330605

Connector Type	Header, Cuttable
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.165 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.079 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

M22-533 Series

Part	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Pitch - Mating	Number of Positions Loaded	Insulation Height	Contact Type	Shrouding	Material Flammability Rating	Fastening Type	Contact Length - Mating	Number of Rows	Number of Positions	Style	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Insulation Material	Contact Shape	Contact Finish - Post	Connector Type	Mounting Type	Current Rating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Current Rating (Per Contact)
Harwin Inc. M22-5330505R	Solder	-40 °C	105 °C	0.079 in	All	0.079 in	Male Pin	Unshrouded	UL94 V-0	Push-Pull	0.165 in	1	5	Board Board or Cable	Black	Brass	Flash	Nylon 9T Polyamide (PA9T)	Square	Gold	Cuttable Header	Right Angle Surface Mount	2 A	Gold	Flash	Flash
Harwin Inc. M22-5330605	Solder	-40 °C	105 °C	0.079 in	All	0.079 in	Male Pin	Unshrouded	UL94 V-0	Push-Pull	0.165 in	1	6	Board Board or Cable	Black	Brass	Flash	Nylon 6T Polyamide (PA6T)	Square		Cuttable Header	Right Angle Surface Mount		Gold			2 A
Harwin Inc. M22-5331405	Solder	-40 °C	105 °C	0.079 in	All	0.079 in	Male Pin	Unshrouded	UL94 V-0	Push-Pull	0.165 in	1	14	Board Board or Cable	Black	Brass	Flash	Nylon 6T Polyamide (PA6T)	Square		Cuttable Header	Right Angle Surface Mount		Gold			2 A
