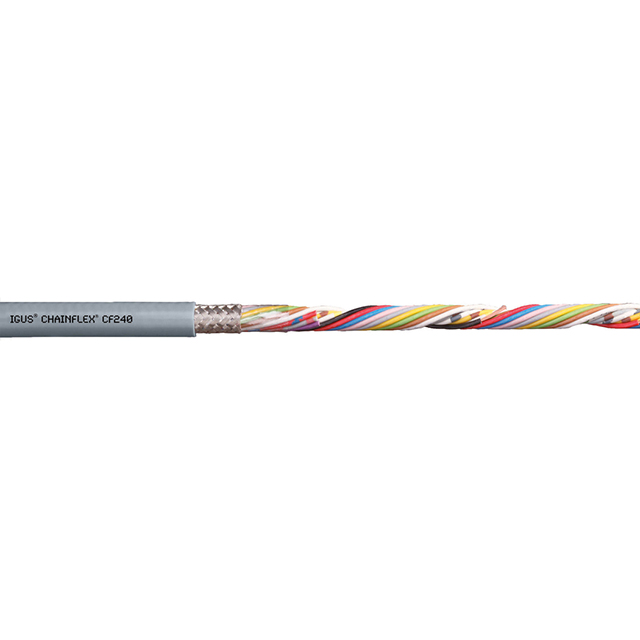

CF240-01-03

Active

Igus

PVC300V 3C/26 AWG DATA CBL FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF240-01-03

Active

Igus

PVC300V 3C/26 AWG DATA CBL FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF240-01-03	CF240 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare	Copper, Bare
Features	Flame Retardant, Oil Resistant	Flame Retardant, Oil Resistant, Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.197 in	0.197 - 0.433 in
Jacket (Insulation) Diameter [diameter]	5 mm	5 - 11 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC), Polyurethane (PU)
Jacket Color	Gray	Gray
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	3	2 - 24
Ratings	UL Style 2464	UL Style 2464, UL Style 20233
Shield Coverage	90 %, 100 %	90 - 100 %
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Foil, Braid
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Usage	-	Industrial, Data
Voltage	300 V	300 V
Wire Gauge	26 AWG	22 - 26 AWG

CF240 Series

PVC300V 4C/26 AWG DATA CBL FEET

Part	Features	Shield Material	Jacket Color	Number of Conductors	Spool Size	Spool Size	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Jacket (Insulation) Material	Conductor Material	Conductor Insulation	Shield Coverage	Cable Type	Ratings	Length	Wire Gauge	Usage
Igus CF240-01-04	Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	4	1000 ft	304.8 m	300 V	0.197 in	5 mm	Braid, Foil	Poly-Vinyl Chloride (PVC)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 2464	Enter Number of Feet in Order Quantity	26 AWG
Igus CF240-PUR-03-14	Abrasion Resistant, Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	14			300 V	0.374 in	9.5 mm	Braid, Foil	Polyurethane (PU)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 20233	Enter Number of Feet in Order Quantity	22 AWG
Igus CF240-PUR-02-05	Abrasion Resistant, Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	5			300 V	0.236 in	5.99 mm	Braid, Foil	Polyurethane (PU)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 20233	Enter Number of Feet in Order Quantity	24 AWG
Igus CF240-PUR-03-04	Abrasion Resistant, Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	4			300 V	0.256 in	6.5 mm	Braid, Foil	Polyurethane (PU)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 20233	Enter Number of Feet in Order Quantity	22 AWG
Igus CF240-01-03	Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	3	1000 ft	304.8 m	300 V	0.197 in	5 mm	Braid, Foil	Poly-Vinyl Chloride (PVC)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 2464	Enter Number of Feet in Order Quantity	26 AWG
Igus CF240-01-05	Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	5	1000 ft	304.8 m	300 V	0.217 in	5.51 mm	Braid, Foil	Poly-Vinyl Chloride (PVC)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 2464	Enter Number of Feet in Order Quantity	26 AWG
Igus CF240-PUR-02-18	Abrasion Resistant, Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	18			300 V	0.354 in	8.99 mm	Braid, Foil	Polyurethane (PU)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 20233	Enter Number of Feet in Order Quantity	24 AWG
Igus CF240-02-07	Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	7	1000 ft	304.8 m	300 V	0.256 in	6.5 mm	Braid, Foil	Poly-Vinyl Chloride (PVC)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 2464	Enter Number of Feet in Order Quantity	24 AWG	Data, Industrial
Igus CF240-PUR-02-14	Abrasion Resistant, Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	14			300 V			Braid, Foil	Polyurethane (PU)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 20233	Enter Number of Feet in Order Quantity	24 AWG
Igus CF240-03-04	Flame Retardant, Oil Resistant	Aluminum, Copper, Tinned	Gray	4	1000 ft	304.8 m	300 V	0.236 in	5.99 mm	Braid, Foil	Poly-Vinyl Chloride (PVC)	Copper, Bare	Thermoplastic Elastomer (TPE)	90 %, 100 %	Multi-Conductor	UL Style 2464	Enter Number of Feet in Order Quantity	22 AWG	Data, Industrial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 3.16
		3	$ 2.92
		5	$ 2.82
		7	$ 2.75
		10	$ 2.69
		25	$ 2.52
		50	$ 2.39
		100	$ 2.27

Description

General part information

CF240 Series

3 Conductor Multi-Conductor Cable Gray 26 AWG Foil, Braid Enter Number of Feet in Order Quantity
