88770 002500

Active

Belden Inc.

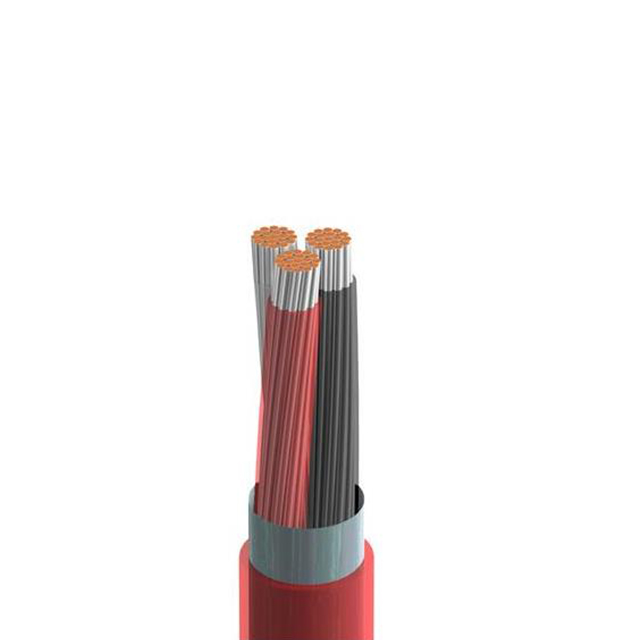

CABLE 3COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	88770 002500

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Gas Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.155 in
Jacket (Insulation) Diameter [diameter]	3.94 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Length [x]	Length [x]	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Conductor Material	Usage	Jacket Color	Voltage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Wire Gauge	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Features	Number of Conductors	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
Belden Inc. 88770 002500	500 '	152.4 m	100 %	0.356 mm	0.014 in	Aluminum	Copper Tinned	Audio Control Instrumentation	Red	300 V	Fluorinated Ethylene-Propylene (FEP)	0.155 in	3.94 mm	Fluorinated Ethylene-Propylene (FEP) Plenum	18 AWG	Multi-Conductor	19	30 AWG	Drain Wire Gas Resistant	3	Foil	200 °C	-70 °C
Belden Inc. 88770 0021000			100 %	0.356 mm	0.014 in	Aluminum	Copper Tinned	Audio Control Instrumentation	Red	300 V	Fluorinated Ethylene-Propylene (FEP)	0.155 in	3.94 mm	Fluorinated Ethylene-Propylene (FEP) Plenum	18 AWG	Multi-Conductor	19	30 AWG	Drain Wire Gas Resistant	3	Foil	200 °C	-70 °C	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.36

General part information

3 Conductor Multi-Conductor Cable Red 18 AWG Foil 500.0' (152.4m)
