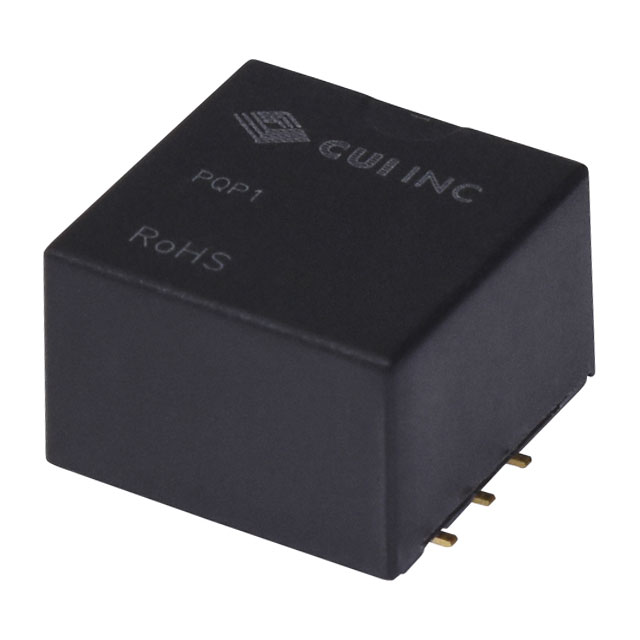

PQP1-D24-S3-M

CUI Inc.

DC DC CONVERTER 3.3V 1W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 3.3V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Applications	Efficiency	Current - Output (Max) [Max]	Approval Agency	Standard Number	Type	Voltage - Output 1
CUI Inc. PQP1-D24-S15-M-TR	1	18 V	36 V	85 °C	-40 °C	Surface Mount	8-SMD Module 5 Leads	0.55 in	14 mm	14 mm	9.1 mm	0.36 in	0.55 in	1.5 kV	ITE (Commercial)	78 %	67 mA	EN	55024 55032	Isolated Module	15 V
CUI Inc. PQP1-D24-S3-M	1	18 V	36 V	85 °C	-40 °C	Surface Mount	8-SMD Module 5 Leads	0.55 in	14 mm	14 mm	9.1 mm	0.36 in	0.55 in	1.5 kV	ITE (Commercial)	75 %	303 mA	EN	55024 55032	Isolated Module	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	35	$ 7.16

General part information

Isolated Module DC DC Converter 1 Output 3.3V 303mA 18V - 36V Input
