1-1355181-6
ActiveTE Connectivity AMP Connectors

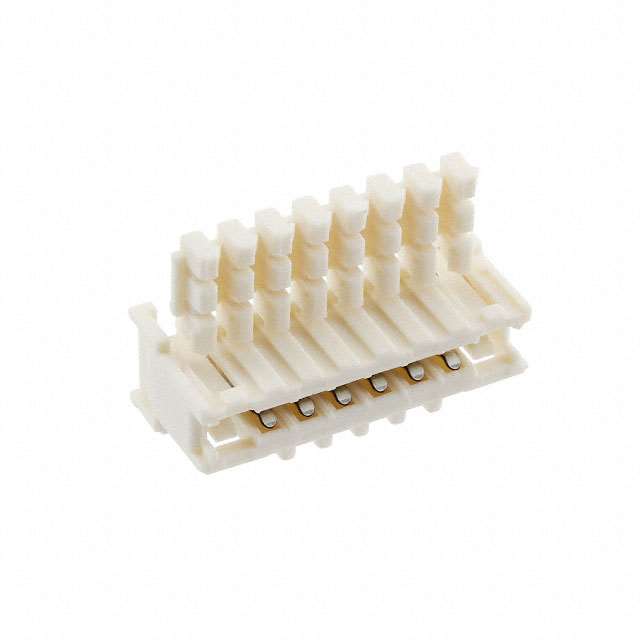

CONN RCPT 6POS IDC 22AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1355181-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 6POS IDC 22AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1355181-6 | 1355181 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin |
| Contact Type | Female Socket | Female Socket |
| Features | Mates to PCB | Mates to PCB |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 6 | 2 - 8 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
| Wire Gauge | 22 AWG | 22 AWG |
| Wire Type | Discrete | Discrete |
1355181 Series
CONN RCPT 7POS IDC 22AWG TIN
| Part | Color | Features | Contact Finish | Wire Type | Wire Gauge | Pitch [x] | Pitch [x] | Contact Type | Cable Termination | Number of Rows | Connector Type | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1355181-7 | Natural | Mates to PCB | Tin | Discrete | 22 AWG | 0.098 in | 2.5 mm | Female Socket | IDC | 1 | Receptacle | Free Hanging (In-Line), Right Angle | 7 |
TE Connectivity AMP Connectors 1-1355181-6 | Natural | Mates to PCB | Tin | Discrete | 22 AWG | 0.098 in | 2.5 mm | Female Socket | IDC | 1 | Receptacle | Free Hanging (In-Line), Right Angle | 6 |
TE Connectivity AMP Connectors 2-1355181-8 | Natural | Mates to PCB | Tin | Discrete | 22 AWG | 0.098 in | 2.5 mm | Female Socket | IDC | 1 | Receptacle | Free Hanging (In-Line), Right Angle | 8 |
TE Connectivity AMP Connectors 2-1355181-6 | Natural | Mates to PCB | Tin | Discrete | 22 AWG | 0.098 in | 2.5 mm | Female Socket | IDC | 1 | Receptacle | Free Hanging (In-Line), Right Angle | 8 |
TE Connectivity AMP Connectors 1-1355181-2 | Natural | Mates to PCB | Tin | Discrete | 22 AWG | 0.098 in | 2.5 mm | Female Socket | IDC | 1 | Receptacle | Free Hanging (In-Line), Right Angle | 2 |
TE Connectivity AMP Connectors 1-1355181-8 | Natural | Mates to PCB | Tin | Discrete | 22 AWG | 0.098 in | 2.5 mm | Female Socket | IDC | 1 | Receptacle | Free Hanging (In-Line), Right Angle | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1355181 Series
6 Position Rectangular Receptacle Connector IDC Tin 22 AWG
