8N36-AA0105-0.50

Obsolete

3M (TC)

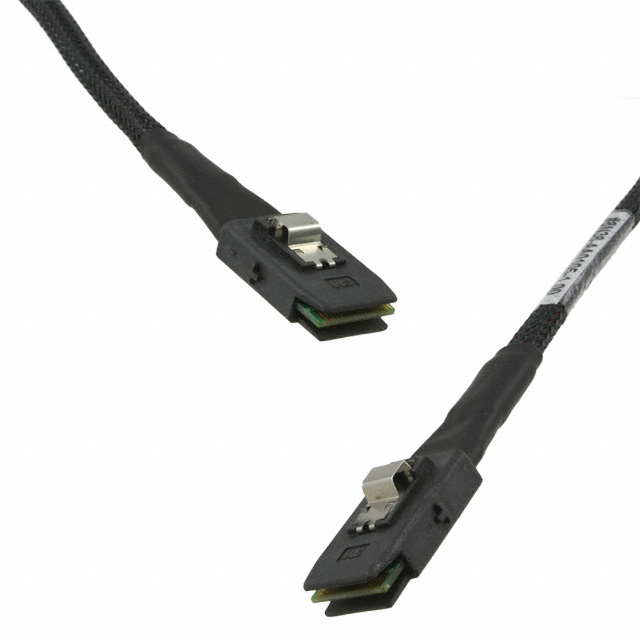

CABLE MINISAS 4I M-M 500MM

Search across all available documentation for this part.

Obsolete

3M (TC)

CABLE MINISAS 4I M-M 500MM

Technical Specifications

Parameters and characteristics for this part

Specification	8N36-AA0105-0.50

Cable Connectors	miniSAS 4i
Cable Type	Round, Twin Axial
Color	Black
Connector Type	Plug to Plug
Fastening Type	Latch Lock
Features	Sidebands on Cable
Frequency - Max [Max]	3 Gbps
Gender	Male to Male
Length [x]	1.64 ft
Length [x]	500 mm
Number of Positions	36
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shielding	Shielded
Usage	Internal, Backplane to Controller

Part	Features	Color	Cable Connectors	Fastening Type	Gender	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Cable Type	Length [x]	Length [x]	Shielding	Connector Type	Frequency - Max [Max]
3M (TC) 8N36-AA0105-0.50	Sidebands on Cable	Black	miniSAS 4i	Latch Lock	Male to Male	Internal Backplane to Controller	-20 C	80 C	36	Round Twin Axial	1.64 ft	500 mm	Shielded	Plug to Plug	3 Gbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

36 Position miniSAS 4i Plug to Plug 1.64' (500.00mm) Black Shielded
