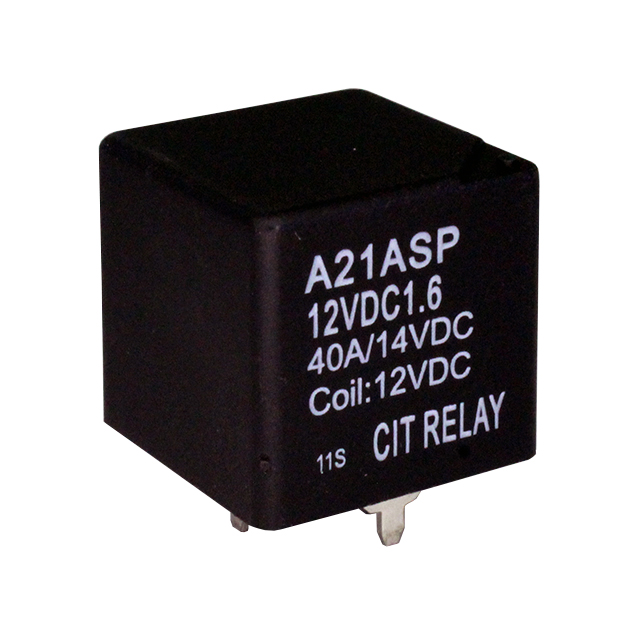

A21ASP12VDC1.6D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 40A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 40A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST 40A 12V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPST 40A 24V

Part	Coil Current	Coil Voltage	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Contact Material	Release Time	Coil Type	Termination Style	Coil Resistance	Mounting Type	Coil Power	Features	Must Operate Voltage	Must Release Voltage	Contact Form	Contact Rating (Current)
CIT Relay and Switch A21ASP24VDC1.6R	66.7 mA	24 VDC	75 VDC	125 °C	-40 °C	7 ms	Silver Tin Oxide (AgSnO)	5 ms	Non Latching	PC Pin	360 Ohms	Through Hole	1.6 W	Resistor, Sealed - Fully	16.8 VDC	2.4 VDC	SPST-NO (1 Form A)	40 A
CIT Relay and Switch A21ASP24VDC1.6D	66.7 mA	24 VDC	75 VDC	125 °C	-40 °C	7 ms	Silver Tin Oxide (AgSnO)	5 ms	Non Latching	PC Pin	360 Ohms	Through Hole	1.6 W	Diode, Sealed - Fully	16.8 VDC	2.4 VDC	SPST-NO (1 Form A)	40 A
CIT Relay and Switch A21ASP12VDC1.6D	133.3 mA	12 VDC	75 VDC	125 °C	-40 °C	7 ms	Silver Tin Oxide (AgSnO)	5 ms	Non Latching	PC Pin	90 Ohms	Through Hole	1.6 W	Diode, Sealed - Fully	8.4 VDC	1.2 VDC	SPST-NO (1 Form A)	40 A
CIT Relay and Switch A21ASP12VDC1.6	133.3 mA	12 VDC	75 VDC	125 °C	-40 °C	7 ms	Silver Tin Oxide (AgSnO)	5 ms	Non Latching	PC Pin	90 Ohms	Through Hole	1.6 W	Sealed - Fully	8.4 VDC	1.2 VDC	SPST-NO (1 Form A)	40 A
