C3500.41.86

Active

Prysmian Group

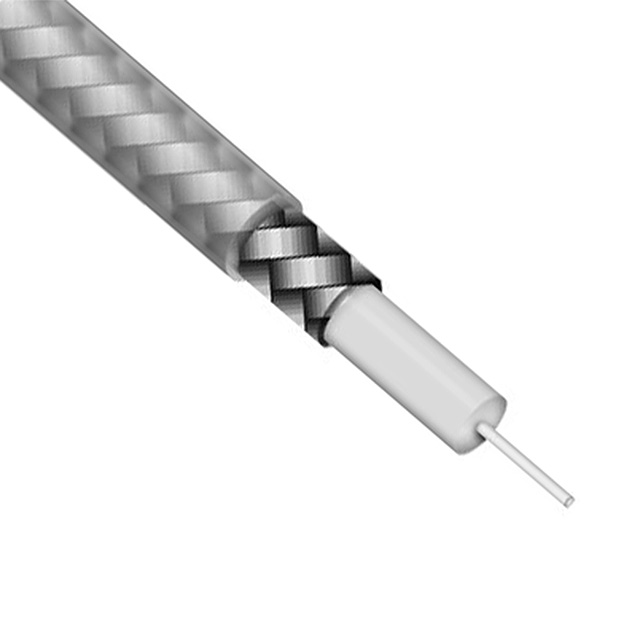

CABLE COAX PLEN RG59 20AWG 1000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAX PLEN RG59 20AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C3500.41.86

Cable Group	RG-59
Cable Type	Coaxial - Plenum
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.145 "
Dielectric Diameter [diameter]	3.68 mm
Dielectric Material	Fluoropolymer (FP)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Natural
Length	304.8 m, 152.4 m
Length	1000 ft, 6000 in
Length [x]	100 ft
Length [x]	30.48 m
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video, RF Signal
VoP, Velocity of Propagation	83
Wire Gauge	20 AWG
Wire Gauge	0.52 mm²
Wire Gauge	20 AWG (0.52mm˛)

Part	Usage	Impedance	Length	Length	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Cable Group	Shield Material	VoP, Velocity of Propagation	Wire Gauge	Wire Gauge	Wire Gauge	Jacket Color	Dielectric Material	Shield Coverage	Jacket (Insulation) Material	Conductor Material	Shield Type	Conductor Strand	Length [x]	Length [x]
Prysmian Group C3500.41.86	RF Signal Video	75 Ohms	152.4 m 304.8 m	1000 ft 6000 in	0.145 "	3.68 mm	5.11 mm	0.201 in	Coaxial - Plenum	RG-59	Copper Bare	83	20 AWG	0.52 mm²	20 AWG (0.52mm˛)	Natural	Fluoropolymer (FP)	95 %	Poly-Vinyl Chloride (PVC)	Copper Coated Steel	Braid	Solid	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Plenum Cable 20 AWG (0.52mm˛) RG-59 1000.0' (304.80m) 75 Ohms
