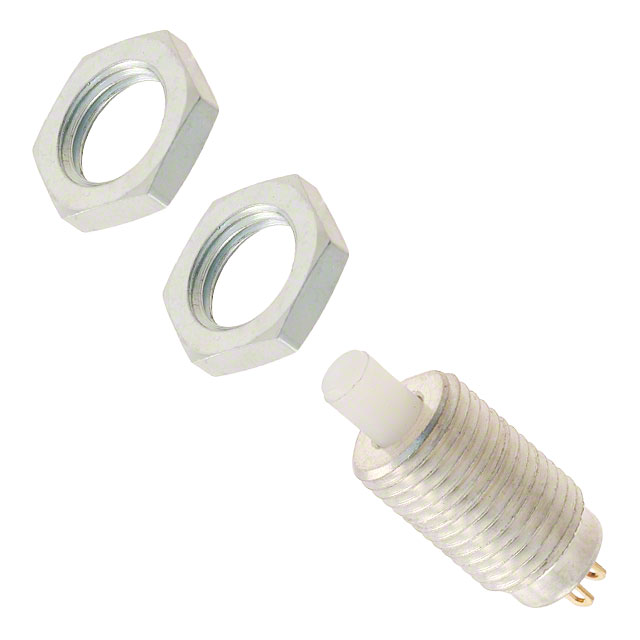

39-101

Active

Grayhill Inc.

PUSHBUTTON SWITCHES PUSHBTN SWITCH SPST N.O. OVERTRAVEL

Search across all available documentation for this part.

Active

Grayhill Inc.

PUSHBUTTON SWITCHES PUSHBTN SWITCH SPST N.O. OVERTRAVEL

Technical Specifications

Parameters and characteristics for this part

Specification	39-101

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	White
Current Rating (Amps)	500 mA
Electrical Life	500000 Cycles
Features	Overtravel
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	8.61 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	115 V

Pushbutton Switches

Part	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Features	Type	Voltage Rating - AC	Actuator Type	Mounting Type	Termination Style	Current Rating (Amps)	Color - Actuator/Cap	Circuit	Actuator Marking	Electrical Life
Grayhill Inc. 39-101	Off-Mom	85 °C	-40 °C	8.61 mm	Overtravel	Standard	115 V	Round, Plunger	Panel Mount, Rear	Solder Lug	500 mA	White	SPST-NO	No Marking	500000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switches
