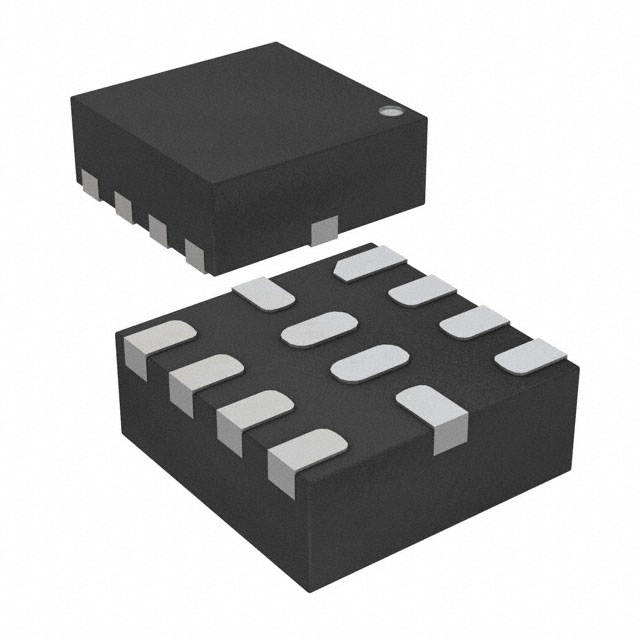

LX7176CLQ-TR
ActiveMicrosemi Corporation
IC REG BUCK ADJ 3A 12QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LX7176CLQ-TR
ActiveMicrosemi Corporation
IC REG BUCK ADJ 3A 12QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LX7176CLQ-TR |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 1.65 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 12-PowerVFQFN |
| Supplier Device Package | 12-QFN (2x2) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 3.3 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LX7176 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 12-PowerVFQFN
