74ALVCH32245LBR
ActiveSTMicroelectronics
IC TXRX NON-INVERT 3.6V 96LFBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74ALVCH32245LBR
ActiveSTMicroelectronics
IC TXRX NON-INVERT 3.6V 96LFBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74ALVCH32245LBR |
|---|---|
| Current - Output High, Low | 24 mA |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |

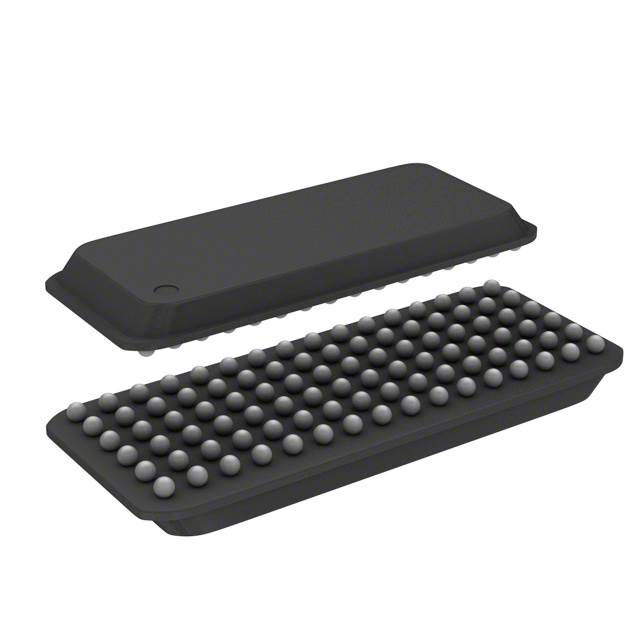

| Package / Case | 96-LFBGA |
| Supplier Device Package | 96-LFBGA (13.5x5.5) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
74ALVCH32245 Series
IC TXRX NON-INVERT 3.6V 96LFBGA
| Part | Current - Output High, Low | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Package / Case | Number of Elements | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Bits per Element | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 74ALVCH32245LBR | 24 mA | 85 °C | -40 °C | 96-LFBGA (13.5x5.5) | Surface Mount | 96-LFBGA | 4 | 1.65 V | 3.6 V | 8 | 3-State |
Description
General part information
74ALVCH32245 Series
Transceiver, Non-Inverting 4 Element 8 Bit per Element 3-State Output 96-LFBGA (13.5x5.5)
Documents
Technical documentation and resources
