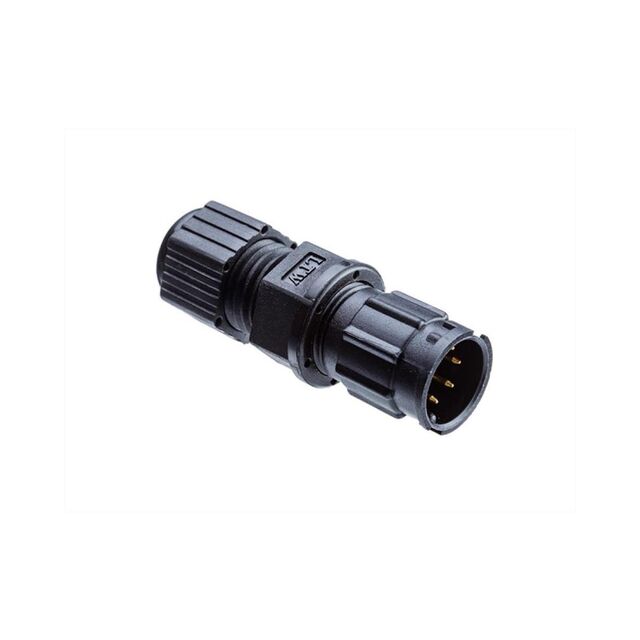

BD-06BMMA-LL6001

Active

Amphenol LTW

STANDARD

Deep-Dive with AI

Search across all available documentation for this part.

BD-06BMMA-LL6001

Active

Amphenol LTW

STANDARD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BD-06BMMA-LL6001

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP66
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

BD-06BMMA Series

Part	Termination	Shielding	Number of Positions	Color	Voltage Rating	Backshell Material, Plating	Connector Type	Ingress Protection	Contact Material	Primary Material	Contact Finish - Mating	Features	Orientation	Insert Material	Current Rating (Amps)	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shell Material	Note	Contact Type	Type	Housing Color	Contact Shape	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating
Amphenol LTW BD-06BMMA-QL8AP0	Crimp	Unshielded	6	Black	300 VDC	Thermoplastic	Male Pins Plug	IP68 - Dust Tight Waterproof	Copper Alloy	Plastic	Gold	Backshell	Keyed	Thermoplastic	5 A	Free Hanging (In-Line)	Bayonet Lock	-40 °C	105 ░C	B
Amphenol LTW BD-06BMMA-LL7001		Unshielded	6	Black		Nylon Polyamide (PA)	Male Pins Receptacle	IP67 - Dust Tight Waterproof	Copper Alloy	Plastic	Gold	Backshell	Keyed	Polyamide (PA) Nylon Glass Filled	5 A	Free Hanging (In-Line)	Bayonet Lock	-40 °C	105 ░C	B	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BD-06BMMA-LL6001		Unshielded	6	Black		Glass Filled Nylon Polyamide (PA)	Male Pins Receptacle	IP66	Copper Alloy	Plastic	Gold	Backshell Coupling Nut	Keyed	Polyamide (PA) Nylon Glass Filled	5 A	Free Hanging (In-Line)	Bayonet Lock	-40 °C	105 ░C	B	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BD-06BMMA-QL8SN0		Unshielded	6				Plug Housing	IP68 - Dust Tight Waterproof		Plastic		Backshell	Keyed	Thermoplastic		Free Hanging (In-Line)	Push-Pull	-40 °C	105 ░C	B		Contacts Not Included	Crimp	For Male Pins	Black	Circular
Amphenol LTW BD-06BMMA-QL8LP0	Crimp	Unshielded	6	Black	300 VAC		Male Pins Plug	IP68 - Dust Tight Waterproof	Copper Alloy	Plastic	Gold	Backshell	Keyed	Polyamide (PA) Nylon Glass Filled	5 A	Free Hanging (In-Line)	Push-Pull	-40 °C	105 ░C	B	Glass Filled Nylon Polyamide (PA)						0.394 in	8 mm	10 mm	0.315 in	UL94 V-0
Amphenol LTW BD-06BMMA-QL8LN0		Unshielded	6				Plug Housing	IP68 - Dust Tight Waterproof		Plastic		Backshell	Keyed	Thermoplastic		Free Hanging (In-Line)	Bayonet Lock	-40 °C	105 ░C	B		Contacts Not Included	Crimp	For Male Pins	Black	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.11

Description

General part information

BD-06BMMA Series

6 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
