SSW-144-01-G-S

Active

Samtec Inc.

CONN RCPT 44POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SSW Single Row Footprint

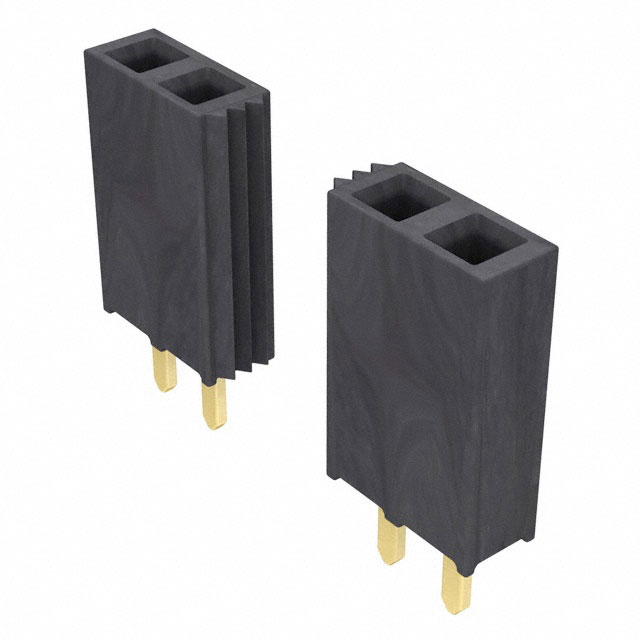

SSW-144-01-G-S

Active

Samtec Inc.

CONN RCPT 44POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet SSW Single Row Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSW-144-01-G-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder

SSW-144 Series

Part	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Shape	Insulation Material	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Material	Contact Finish - Mating	Termination	Current Rating (Amps)	Number of Rows	Style	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SSW-144-01-F-T	All	2.54 mm	0.1 in	Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Tin	0.104 in	2.64 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	3	Board to Board Cable	132	3 µin	0.076 µm	0.335 "	8.51 mm	Push-Pull
Samtec Inc. SSW-144-02-S-S	All			Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Tin	0.194 in	4.93 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	1	Board to Board Cable	44	30 Áin	0.76 Ám	0.335 "	8.51 mm	Push-Pull
Samtec Inc. SSW-144-01-G-D	All	2.54 mm	0.1 in	Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Gold	0.104 in	2.64 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	2	Board to Board Cable	88	20 µin	0.51 µm	0.335 "	8.51 mm	Push-Pull	3 µin	0.076 µm
Samtec Inc. SSW-144-01-G-S	All			Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Gold	0.104 in	2.64 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	1	Board to Board Cable	44	20 µin	0.51 µm	0.335 "	8.51 mm	Push-Pull	3 µin	0.076 µm
Samtec Inc. SSW-144-22-G-T-RA	All	2.54 mm	0.1 in	Through Hole Right Angle	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Gold	0.1 in	2.54 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	3	Board to Board Cable	132	20 µin	0.51 µm	0.295 in	7.5 mm	Push-Pull	3 µin	0.076 µm
Samtec Inc. SSW-144-02-G-S	All			Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Gold	0.194 in	4.93 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	1	Board to Board Cable	44	20 µin	0.51 µm	0.335 "	8.51 mm	Push-Pull	3 µin	0.076 µm
Samtec Inc. SSW-144-01-L-S	All			Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Tin	0.104 in	2.64 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	1	Board to Board Cable	44	10 çin	0.25 çm	0.335 "	8.51 mm	Push-Pull
Samtec Inc. SSW-144-02-S-D	All	2.54 mm	0.1 in	Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Tin	0.194 in	4.93 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	2	Board to Board Cable	88	30 Áin	0.76 Ám	0.335 "	8.51 mm	Push-Pull
Samtec Inc. SSW-144-21-S-T	All	2.54 mm	0.1 in	Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	125 °C	Tin	0.104 in	2.64 mm	Black	Phosphor Bronze	Gold	Solder	4.7 A	3	Board to Board Cable	132	30 Áin	0.76 Ám	0.335 "	8.51 mm	Push-Pull
Samtec Inc. SSW-144-01-T-D	All	2.54 mm	0.1 in	Through Hole	Square	Liquid Crystal Polymer (LCP)	Receptacle	UL94 V-0	0.1 in	2.54 mm	Forked	-55 °C	105 ░C	Tin	0.104 in	2.64 mm	Black	Phosphor Bronze		Solder	4.7 A	2	Board to Board Cable	88			0.335 "	8.51 mm	Push-Pull
