FN7660-32-M4

Active

TE Connectivity Raychem Cable Protection

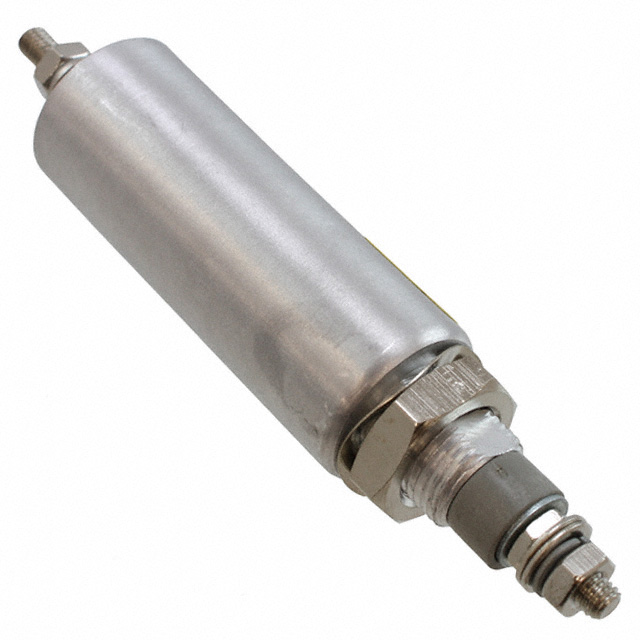

FILTER LC(PI) 70NH/0.01UH BOLT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

FILTER LC(PI) 70NH/0.01UH BOLT

Technical Specifications

Parameters and characteristics for this part

Specification	FN7660-32-M4

Applications	Data Lines for Mobile Devices
Current	32 A
ESD Protection	False
Filter Order	3
Mounting Type	Bolt Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Axial - Threaded Terminals
Resistance - Channel (Ohms)	0.00065 Ohms
Size / Dimension [diameter]	20 mm
Size / Dimension [diameter]	0.787 in
Size / Dimension [x]	73 mm
Size / Dimension [x]	2.874 in
Technology	LC (Pi)
Type	Low Pass
Values	70 nH, 10000 pF
Voltage - Rated	130 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Filter Order	Technology	Values	Applications	Resistance - Channel (Ohms) [custom]	Mounting Type	Type	Voltage - Rated	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Package / Case	Current	Resistance - Channel (Ohms)	Size / Dimension
TE Connectivity Raychem Cable Protection FN7660-200-M10	100 °C	-40 °C	1	3	LC (Pi)	0.47 µF 124 nH	Data Lines for Mobile Devices	0.00024 Ohms	Bolt Mount	Low Pass	130 V	5.906 in	38 mm	150 mm	1.496 "	Axial - Threaded Terminals	200 A
TE Connectivity Raychem Cable Protection FN7660-32-M4	100 °C	-40 °C	1	3	LC (Pi)	70 nH 10000 pF	Data Lines for Mobile Devices		Bolt Mount	Low Pass	130 V	2.874 in	20 mm	73 mm	0.787 in	Axial - Threaded Terminals	32 A	0.00065 Ohms
TE Connectivity Raychem Cable Protection FN7660-10-M3	100 °C	-40 °C	1	3	LC (Pi)	58 nH 10000 pF	Data Lines for Mobile Devices	0.00106 Ohms	Bolt Mount	Low Pass	130 V	2.402 in	20 mm	61 mm	0.787 in	Axial - Threaded Terminals	10 A
TE Connectivity Raychem Cable Protection FN7660-100-M8	100 °C	-40 °C	1	3	LC (Pi)	0.47 µF 124 nH	Data Lines for Mobile Devices		Bolt Mount	Low Pass	130 V	4.724 "			1.26 "	Axial - Threaded Terminals	100 A	0.00025 Ohms	32 mm 120 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 10000pF 32 A Axial - Threaded Terminals
