Description
General part information
ADS8555EVM-PDK

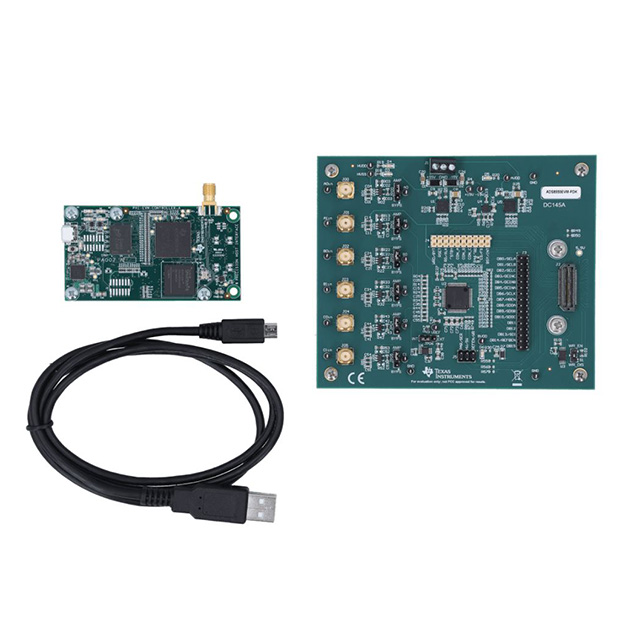

ADS8555 - 16 Bit 450k, 630k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | ADS8555EVM-PDK |
|---|---|
| Contents | Board |
| Data Interface | SPI, Parallel |
| Input Voltage (Max) | 12 V |
| Input Voltage (Min) | -12 V |
| Number of A/D Converters | 6 count |
| Number of Bits | 16 bits |
| Power (Typ) | 251.7 mW |
| Sampling Rate (Per Second) | 450 kHz, 630 kHz |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ADS8555 |
