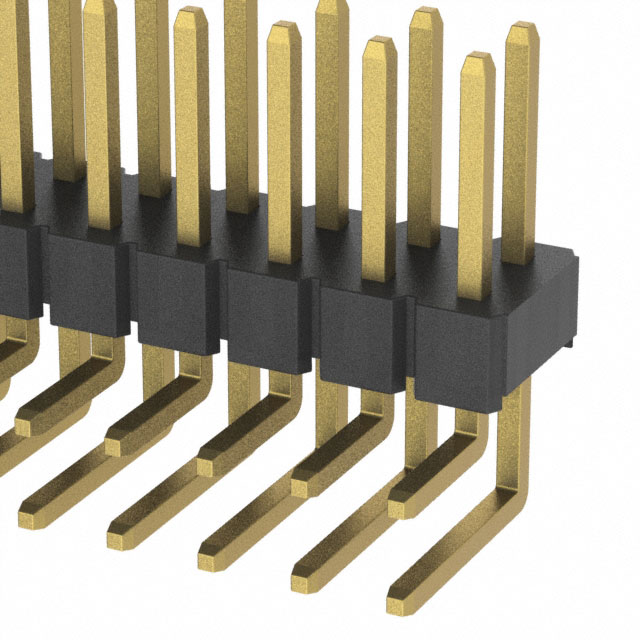

PH2RA-20-UA
ActiveAdam Tech
CONN HEADER R/A 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
PH2RA-20-UA
ActiveAdam Tech
CONN HEADER R/A 20POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PH2RA-20-UA |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 5.97 mm |
| Contact Length - Mating [x] | 0.235 in |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.197 in |
| Insulation Height | 5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Termination | Solder |
| Voltage Rating | 250 VAC |
PH2RA Series
| Part | Number of Positions Loaded | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Length - Mating [x] | Contact Length - Mating | Number of Rows | Shrouding | Current Rating (Amps) | Insulation Height | Insulation Height | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Type | Contact Material | Voltage Rating | Insulation Color | Connector Type | Material Flammability Rating | Number of Positions | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Shape | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | 18 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | |
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | 22 positions | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | |
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | 26 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | |
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | 20 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | |
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | 12 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | |
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | ||
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | 16 | |
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | 38 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | |
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | 36 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square | |
Adam Tech | All | Through Hole Right Angle | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.235 in | 5.97 mm | 2 | Unshrouded | 3 A | 0.197 in | 5 mm | Gold | Flash | Male Pin | Brass | 250 VAC | Black | Header | UL94 V-0 | 34 | Push-Pull | 0.12 in | 3.05 mm | 2.54 mm | 0.1 in | Solder | Flash | -40 °C | 105 ░C | Gold | Square |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.25 | |||
| 5000 | $ 0.21 | |||
| 10000 | $ 0.19 | |||
Description
General part information
PH2RA Series
Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
