CF322513-R12K

Obsolete

Bourns Inc.

FIXED IND 120NH 450MA 220MOHM SM

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 120NH 450MA 220MOHM SM

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Inductance	Material - Core	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Q @ Freq	Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Tolerance	DC Resistance (DCR)
Bourns Inc. CF322513-100K	1210	3225 Metric	10 µH	Ferrite	150 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	Shielded	2.52 MHz	2.1 Ohm	36 MHz	2.52 MHz 30	Multilayer	-55 °C	125 °C	1210	Surface Mount	1.5 mm	0.059 "	10 %
Bourns Inc. CF322513-1R0K	1210	3225 Metric	1 µH	Ferrite	400 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	Shielded	7.96 MHz	700 mOhm	120 MHz	7.96 MHz 30	Multilayer	-55 °C	125 °C	1210	Surface Mount	1.5 mm	0.059 "	10 %
Bourns Inc. CF322513-R12K	1210	3225 Metric	120 nH	Ferrite	450 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	Shielded	25.2 MHz		500 MHz	25.2 MHz 30	Multilayer	-55 °C	125 °C	1210	Surface Mount	1.5 mm	0.059 "	10 %	220 mOhm
Bourns Inc. CF322513-R18K	1210	3225 Metric	180 nH	Ferrite	450 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	Shielded	25.2 MHz	280 mOhm	400 MHz	25.2 MHz 30	Multilayer	-55 °C	125 °C	1210	Surface Mount	1.5 mm	0.059 "	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

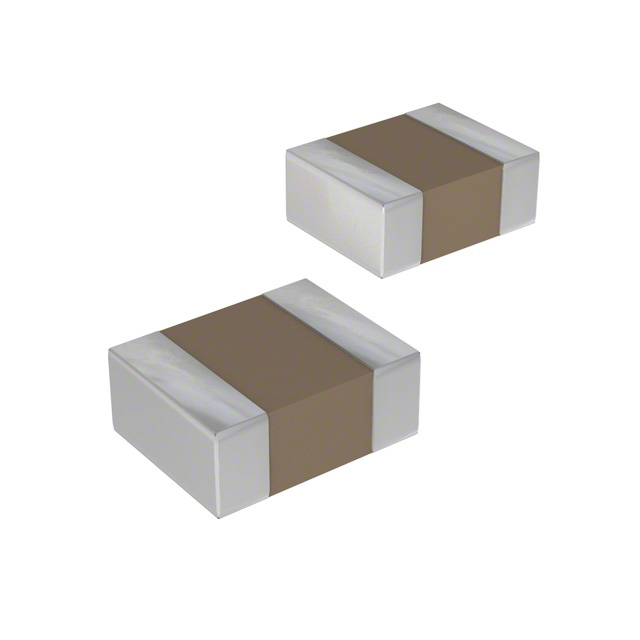

120 nH Shielded Multilayer Inductor 450 mA 220mOhm Max 1210 (3225 Metric)
