Q-0J01F0005.75M

Active

Amphenol Custom Cable

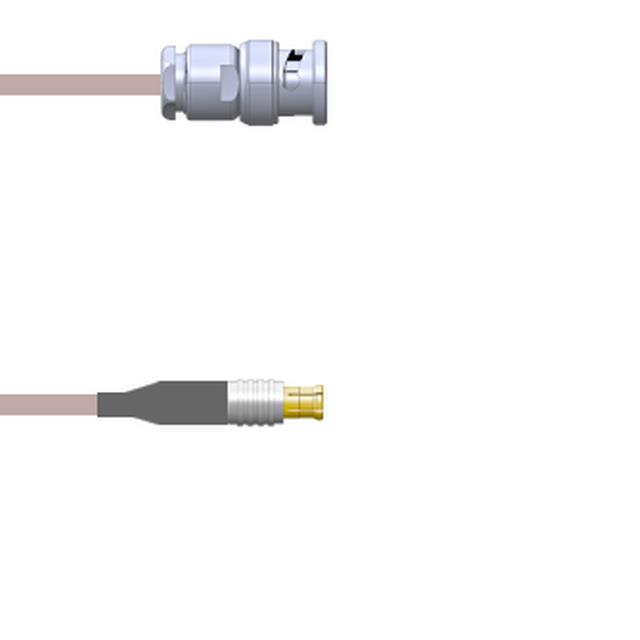

CBL ASSY BNC-MCX PLUG-PLG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J01F0005.75M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX PLUG-PLG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J01F0005.75M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0J01F0 Series

Part	Cable Type	2nd Connector Mounting Type	Features	1st Connector Mounting Type	2nd Connector	1st Connector	Overall Impedance	Frequency - Max [Max]	Color	Style	Length	Length	Length	1st Contact Gender	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0J01F0003060i	RG-174	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Black	BNC to MCX	5 ft	1.5 m	5 '	Male	Male
Amphenol Custom Cable Q-0J01F0003.25M	RG-174	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Black	BNC to MCX				Male	Male	9.843 "	250 mm
Amphenol Custom Cable Q-0J01F0005036i	RG-316	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Copper	BNC to MCX		91.44 cm	36 in	Male	Male
Amphenol Custom Cable Q-0J01F0005072i	RG-316	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Copper	BNC to MCX	6 ft	1.8 m	72 in	Male	Male
Amphenol Custom Cable Q-0J01F0003003i	RG-174	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Black	BNC to MCX		76.2 mm	3 in	Male	Male
Amphenol Custom Cable Q-0J01F0005018i	RG-316	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Copper	BNC to MCX				Male	Male		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J01F00032.5M	RG-174	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Black	BNC to MCX	8.2 '	2.5 m	98.4 in	Male	Male
Amphenol Custom Cable Q-0J01F0003003M	RG-174	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Black	BNC to MCX	9.8 '	3 m	118.1 in	Male	Male
Amphenol Custom Cable Q-0J01F0003084i	RG-174	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Black	BNC to MCX	7 ft	2.1 m	84 in	Male	Male
Amphenol Custom Cable Q-0J01F0005.75M	RG-316	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	MCX Plug	BNC Plug	50 Ohms	4 GHz	Copper	BNC to MCX		750 mm	29.53 "	Male	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.03
		25	$ 79.45
		50	$ 77.87
		100	$ 76.30
		250	$ 74.72

Description

General part information

Q-0J01F0 Series

Cable Assembly Coaxial BNC to MCX RG-316 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
