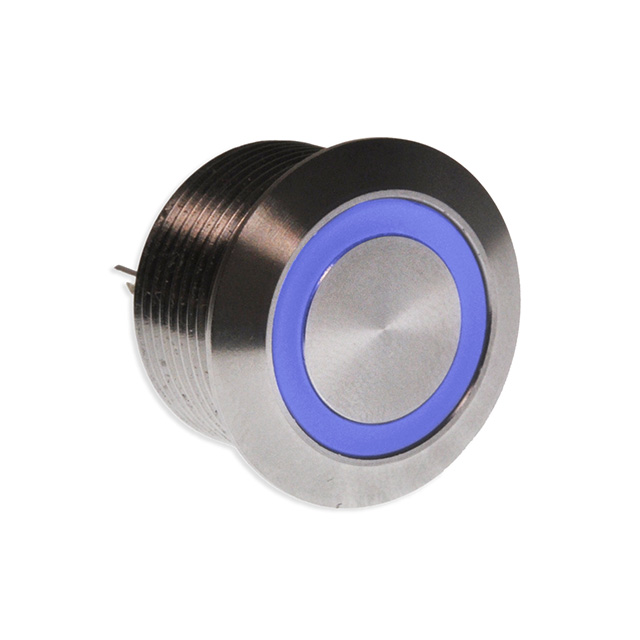

PVT4FW4SS341

Active

E-Switch

SWITCH PB SPST .05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

PVT4FW4SS341

Active

E-Switch

SWITCH PB SPST .05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PVT4FW4SS341

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	50 mA
Electrical Life	500000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

PVT4 Series

Part	Switch Function	Mechanical Life	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Current Rating (Amps)	Ingress Protection	Type	Termination Style	Circuit	Actuator Marking	Actuator Type	Illumination Type, Color	Voltage Rating - DC	Electrical Life	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]
E-Switch PVT4FW4SS341	Off-Mom	500000 Cycles	2.8 VDC	55 °C	-25 °C	Stainless Steel	Panel Mount Front	50 mA	IP65 - Dust Tight Water Resistant	Anti-Vandal Illuminated	Wire Leads	SPST-NO	No Marking	Button Flush Round	Blue LED	24 V	500000 Cycles	Silver	19 mm
E-Switch PVT4FS4SS311	Off-Mom	500000 Cycles	1.8 VDC	55 °C	-25 °C	Stainless Steel	Panel Mount Front	50 mA	IP65 - Dust Tight Water Resistant	Anti-Vandal Illuminated	Solder Lug	SPST-NO	No Marking	Button Flush Round	LED Red	24 V	500000 Cycles	Silver	19 mm
E-Switch PVT4FW4SS331	Off-Mom	500000 Cycles	2.8 VDC	55 °C	-25 °C	Stainless Steel	Panel Mount Front	50 mA	IP65 - Dust Tight Water Resistant	Anti-Vandal Illuminated	Wire Leads	SPST-NO	No Marking	Button Flush Round	Green LED	24 V	500000 Cycles	Silver	19 mm
E-Switch PVT4FS4SS344	Off-Mom	500000 Cycles	12 VDC	55 °C	-25 °C	Stainless Steel	Panel Mount Front	50 mA	IP65 - Dust Tight Water Resistant	Anti-Vandal Illuminated	Solder Lug	SPST-NO	No Marking	Button Flush Round	Blue LED	24 V	500000 Cycles	Silver	19 mm
E-Switch PVT4FS4SS341	Off-Mom	500000 Cycles	2.8 VDC	55 °C	-25 °C	Stainless Steel	Panel Mount Front	50 mA	IP65 - Dust Tight Water Resistant	Anti-Vandal Illuminated	Solder Lug	SPST-NO	No Marking	Button Flush Round	Blue LED	24 V	500000 Cycles	Silver	19 mm
E-Switch PVT4FS4SS314	Off-Mom	500000 Cycles	12 VDC	55 °C	-25 °C	Stainless Steel	Panel Mount Front	50 mA	IP65 - Dust Tight Water Resistant	Anti-Vandal Illuminated	Solder Lug	SPST-NO	No Marking	Button Flush Round	LED Red	24 V	500000 Cycles	Silver	19 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.35
		10	$ 21.01
		30	$ 19.58
		60	$ 18.72
		120	$ 17.90
		270	$ 16.99
		510	$ 16.30

Description

General part information

PVT4 Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
