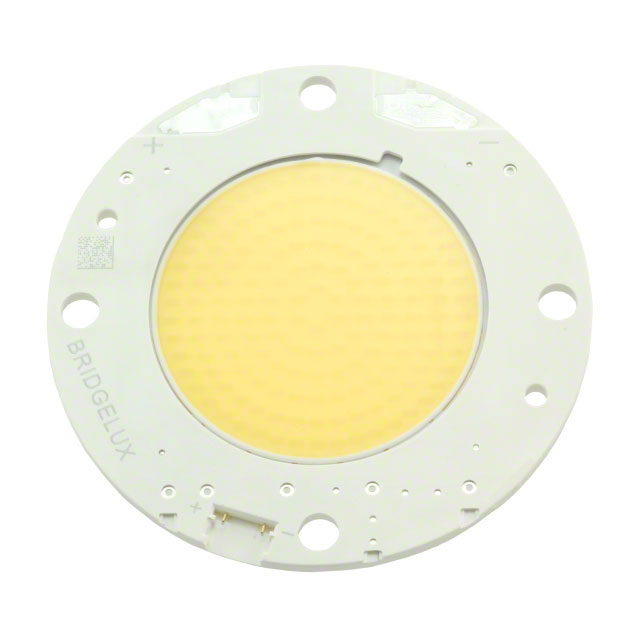

BXRC-56G10K0-L-24

Obsolete

BRIDGELUX

LED COB DECOR CL WH ROUND 5600K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-56G10K0-L-24

Obsolete

BRIDGELUX

LED COB DECOR CL WH ROUND 5600K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRC-56 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Décor Series™ Specialty Vero® 29 White, Cool Round

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-56G10K0-L-24	BXRC-56 Series

CCT (K)	5600 K	5600 K
Color	Cool, White	Cool, White
Configuration	Round	Round
CRI (Color Rendering Index)	90	90 - 97
Current - Max [Max]	4.2 A	1.8 - 4.2 A
Current - Test	2.1 A	1.05 - 900 A
Features	With Connector	With Connector
Height [z]	1.9 mm	1.9 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	29.2 mm	18.4 - 29.2 mm
Lumens/Watt @ Current - Test	114 lm/W	112 - 152 lm/W
Luminous Flux @ Current/Temperature	-	3407 - 18038 lm
Size / Dimension [diameter]	49.2 mm	36.2 - 49.2 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	36.8 V	28.1 - 69.4 V

BXRC-56 Series

VERO SE 18D COOL WHITE LED ARRAY

Part	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Temperature - Test	Lens Type	Configuration	Height [z]	Lumens/Watt @ Current - Test	CCT (K)	Current - Max [Max]	Viewing Angle	Type	Current - Test	Size / Dimension [diameter]	Color	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Features
BRIDGELUX BXRC-56H4000-D-74-SE	18.4 mm	97	85 °C	Flat	Round	3.6 mm	120 lm/W	5600 K	2.1 A	120 °	Chip On Board (COB)	1.05 A	36.2 mm	Cool, White	28.3 V	3563 lm
BRIDGELUX BXRC-56G10K1-C-74-SE	29.2 mm	90		Flat	Round	3.6 mm	152 lm/W	5600 K	3.42 A	120 °	Chip On Board (COB)	1.71 A	49.2 mm	Cool, White	69.4 V	18038 lm
BRIDGELUX BXRC-56G10K1-D-74	29.2 mm	90		Flat	Round	1.9 mm	148 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	37.6 V	11677 lm	With Connector
BRIDGELUX BXRC-56G4001-C-74-SE	18.4 mm	90	85 °C	Flat	Round	3.6 mm		5600 K	2.34 A	120 °	Chip On Board (COB)		36.2 mm	Cool, White
BRIDGELUX BXRC-56G10K1-D-74-SE	29.2 mm	90		Flat	Round	3.6 mm	152 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	37.6 V	12002 lm
BRIDGELUX BXRC-56G10K0-L-24	29.2 mm	90	85 °C	Flat	Round	1.9 mm	114 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	36.8 V		With Connector
BRIDGELUX BXRC-56G10K1-C-74	29.2 mm	90		Flat	Round	1.9 mm	148 lm/W	5600 K	3.42 A	120 °	Chip On Board (COB)	1.71 A	49.2 mm	Cool, White	69.4 V	17554 lm	With Connector
BRIDGELUX BXRC-56H10K0-D-74-SE	29.2 mm	97		Flat	Round	3.6 mm	122 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	37.6 V	10423 lm
BRIDGELUX BXRC-56G4001-D-74	18.4 mm	90		Flat	Round	1.9 mm	137 lm/W	5600 K	2.1 A	120 °	Chip On Board (COB)	1.05 A	36.2 mm	Cool, White	28.1 V	4042 lm	With Connector
BRIDGELUX BXRC-56G10K0-L-04	29.2 mm	90		Flat	Round	1.9 mm	112 lm/W	5600 K	4.2 A	120 °	Chip On Board (COB)	2.1 A	49.2 mm	Cool, White	38.6 V	9060 lm
