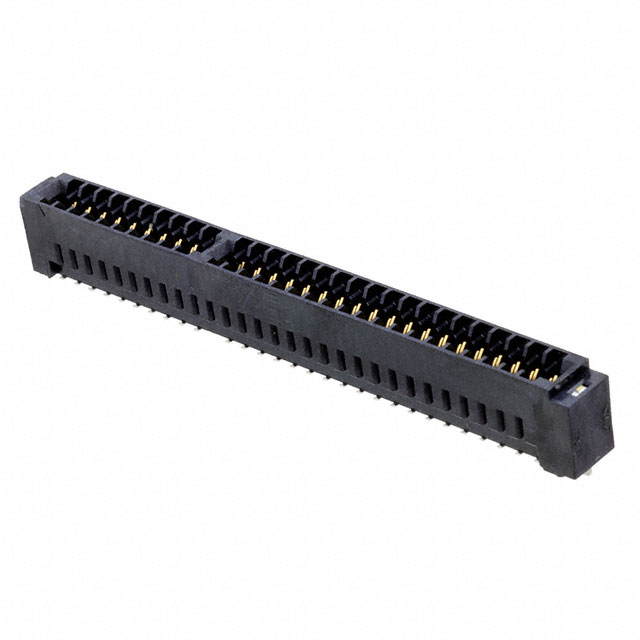

MEC2-30-01-L-DV-WT

Active

Samtec Inc.

CONN CARD EDGE F 60 POS 2MM SOLDER ST SMD TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN CARD EDGE F 60 POS 2MM SOLDER ST SMD TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	MEC2-30-01-L-DV-WT

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Contact Type	Cantilever
Features	Solder Retention, Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Read Out	Dual
Termination	Solder

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions	Termination	Card Type	Color	Card Thickness	Card Thickness	Features	Gender	Number of Rows	Read Out	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish
Samtec Inc. MEC2-30-01-L-DV-WT	Surface Mount	-55 °C	125 °C	Cantilever	Beryllium Copper	10 Áin	0.25 Ám	30	60	Solder	Non Specified - Dual Edge	Black	0.062 in	1.57 mm	Board Guide Solder Retention	Female	2	Dual	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Female Connector Non Specified - Dual Edge Gold 0.079" (2.00mm) Black
