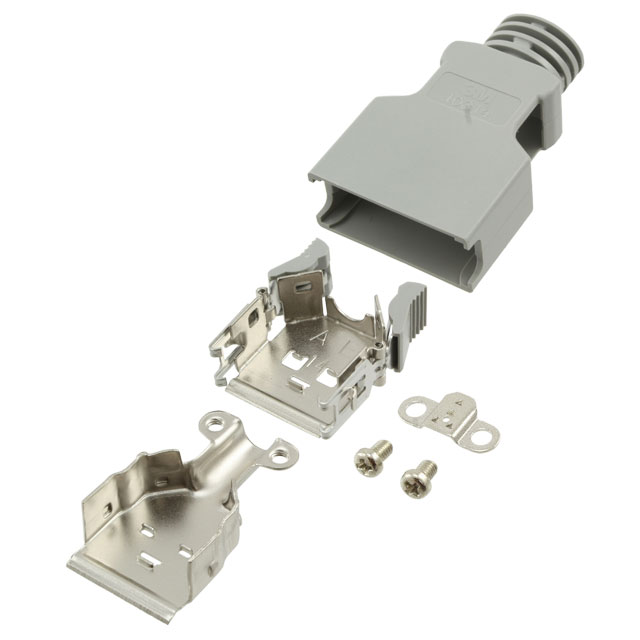

10314-3210-003
Active3M
14/MDR/SHELL/PLASTIC/LITE GRAY/SLIM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
10314-3210-003
Active3M
14/MDR/SHELL/PLASTIC/LITE GRAY/SLIM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10314-3210-003 | 10314 Series |
|---|---|---|
| Accessory Type | Two Piece Backshell and Cover | Two Piece Backshell and Cover, Two Piece Backshell |
| Cable Exit | 180 ° | 60 - 180 ° |
| Cable Type | Round | Round |
| Color | Gray, Medium | Beige, Silver, Black, Gray, Medium |
| Features | Latch Lock | Latch Lock |
| Hardware | - | Assembly Hardware, Strain Relief |
| Material | - | Zinc Alloy, Polybutylene Terephthalate (PBT), Glass Filled, Metal |
| Material [custom] | Plastic, Steel | Plastic, Steel |
| Material [custom] | Metal | Metal |
| Number of Positions | 14 | 14 |
| Plating | - | Nickel |
| Primary Material | Metal | Metal, Plastic |
| Shielding | Shielded | Shielded, Unshielded |
10314 Series
CONNECTOR BACKSHELL, PLASTIC SHIELDED JUNCTION BACKSHELL, MDR 14 POSITION CONNECTOR, 14, 180°
| Part | Material [custom] | Material [custom] | Cable Type | Cable Exit | Color | Accessory Type | Primary Material | Number of Positions | Features | Shielding | Plating | Material | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plastic, Steel | Metal | Round | 180 ° | Beige | Two Piece Backshell and Cover | Metal | 14 | Latch Lock | Shielded | ||||
Round | 60 ° | Silver | Two Piece Backshell | Metal | 14 | Latch Lock | Shielded | Nickel | Zinc Alloy | ||||
Round | 180 ° | Black | Two Piece Backshell | Plastic | 14 | Latch Lock | Unshielded | Polybutylene Terephthalate (PBT), Glass Filled | Assembly Hardware, Strain Relief | ||||
Round | 180 ° | Silver | Two Piece Backshell | Metal | 14 | Latch Lock | Shielded | Nickel | Metal, Zinc Alloy | ||||
Plastic, Steel | Metal | Round | 180 ° | Gray, Medium | Two Piece Backshell and Cover | Metal | 14 | Latch Lock | Shielded | ||||
Plastic, Steel | Metal | Round | 180 ° | Black | Two Piece Backshell and Cover | Metal | 14 | Latch Lock | Shielded | ||||
Round | 60 ° | Silver | Two Piece Backshell | Metal | 14 | Latch Lock | Shielded | Nickel | Metal, Zinc Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
10314 Series
14 Position Two Piece Backshell and Cover Connector Gray, Medium 180° Shielded
