10314-52F0-008

Active

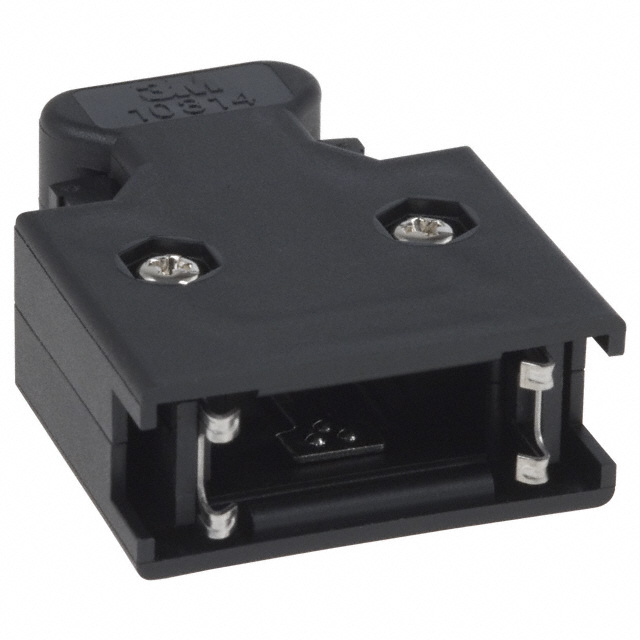

JUNCTION SHELL 180° POLYBUTYLENE TEREPHTHALATE

Search across all available documentation for this part.

Active

JUNCTION SHELL 180° POLYBUTYLENE TEREPHTHALATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10314-52F0-008	10314 Series

Accessory Type	Two Piece Backshell	Two Piece Backshell and Cover, Two Piece Backshell
Cable Exit	180 °	60 - 180 °
Cable Type	Round	Round
Color	Black	Beige, Silver, Black, Gray, Medium
Features	Latch Lock	Latch Lock
Hardware	Assembly Hardware, Strain Relief	Assembly Hardware, Strain Relief
Material	Polybutylene Terephthalate (PBT), Glass Filled	Zinc Alloy, Polybutylene Terephthalate (PBT), Glass Filled, Metal
Material	-	Plastic, Steel
Material	-	Metal
Number of Positions	14	14
Plating	-	Nickel
Primary Material	Plastic	Metal, Plastic
Shielding	Unshielded	Shielded, Unshielded

CONNECTOR BACKSHELL, PLASTIC SHIELDED JUNCTION BACKSHELL, MDR 14 POSITION CONNECTOR, 14, 180°

Part	Material [custom]	Material [custom]	Cable Type	Cable Exit	Color	Accessory Type	Primary Material	Number of Positions	Features	Shielding	Plating	Material	Hardware
3M 10314-3210-000	Plastic, Steel	Metal	Round	180 °	Beige	Two Piece Backshell and Cover	Metal	14	Latch Lock	Shielded
3M 10314-C500-00			Round	60 °	Silver	Two Piece Backshell	Metal	14	Latch Lock	Shielded	Nickel	Zinc Alloy
3M 10314-52F0-008			Round	180 °	Black	Two Piece Backshell	Plastic	14	Latch Lock	Unshielded		Polybutylene Terephthalate (PBT), Glass Filled	Assembly Hardware, Strain Relief
3M 10314-A200-00			Round	180 °	Silver	Two Piece Backshell	Metal	14	Latch Lock	Shielded	Nickel	Metal, Zinc Alloy
3M 10314-3210-003	Plastic, Steel	Metal	Round	180 °	Gray, Medium	Two Piece Backshell and Cover	Metal	14	Latch Lock	Shielded
3M 10314-3210-006	Plastic, Steel	Metal	Round	180 °	Black	Two Piece Backshell and Cover	Metal	14	Latch Lock	Shielded
3M 10314-A500-00			Round	60 °	Silver	Two Piece Backshell	Metal	14	Latch Lock	Shielded	Nickel	Metal, Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Two Piece Backshell Connector Black 180° Unshielded
