N100-70/2-326

Active

Boyd Laconia, LLC

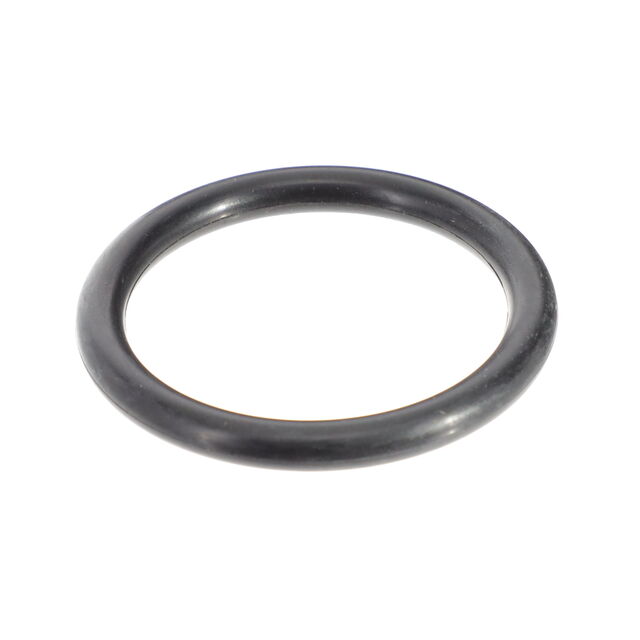

NITRILE -326 O-RING

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

NITRILE -326 O-RING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NITRILE -326 O-RING

Technical documentation and resources

Parameters and characteristics commom to parts in this series

NITRILE -007 O-RING

Part	Color	Hardness	Dash Number	Material	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Width / Cross Section [y]	Width / Cross Section [y]	Width / Cross Section [x]	Width / Cross Section [x]	Dash Number	Diameter - Inside [diameter]
Boyd Laconia, LLC N100-70/2-007	Black	70 Shore A	-007	Buna N (Nitrile NBR)	3.68 mm	0.145 "	-40 °C	121 °C	1.78 mm	0.07 in
Boyd Laconia, LLC N100-70/2-326	Black	70 Shore A	-326	Buna N (Nitrile NBR)	40.64 mm	1.6 in	-40 °C	121 °C			0.21 in	5.33 mm
Boyd Laconia, LLC N100-70/2-116	Black	70 Shore A	-116	Buna N (Nitrile NBR)	18.72 mm	0.737 in	-40 °C	121 °C	2.62 mm	0.103 in
Boyd Laconia, LLC N100-70/2-216	Black	70 Shore A	-216	Buna N (Nitrile NBR)	28.17 mm	1.109 "	-40 °C	121 °C	3.53 mm	0.139 in
Boyd Laconia, LLC N100-70/2-110	Black	70 Shore A	-110	Buna N (Nitrile NBR)	9.19 mm	0.362 in	-40 °C	121 °C	2.62 mm	0.103 in
Boyd Laconia, LLC N100-70/2-221	Black	70 Shore A	-221	Buna N (Nitrile NBR)	36.09 mm	1.421 in	-40 °C	121 °C	3.53 mm	0.139 in
Boyd Laconia, LLC N100-70/2-325	Black	70 Shore A	-325	Buna N (Nitrile NBR)	37.47 mm	1.475 "	-40 °C	121 °C			0.21 in	5.33 mm
Boyd Laconia, LLC N100-70/2-214	Black	70 Shore A		Buna N (Nitrile NBR)	24.99 mm	0.984 in	-40 °C	121 °C	3.53 mm	0.139 in			-214
Boyd Laconia, LLC N100-70/2-009	Black	70 Shore A	-009	Buna N (Nitrile NBR)	0.208 "		-40 °C	121 °C	1.78 mm	0.07 in				5.28 mm
Boyd Laconia, LLC N100-70/2-008	Black	70 Shore A	-008	Buna N (Nitrile NBR)	4.47 mm	0.176 in	-40 °C	121 °C	1.78 mm	0.07 in
