SSL-LX20465ID
ActiveLumex Opto/Components Inc.

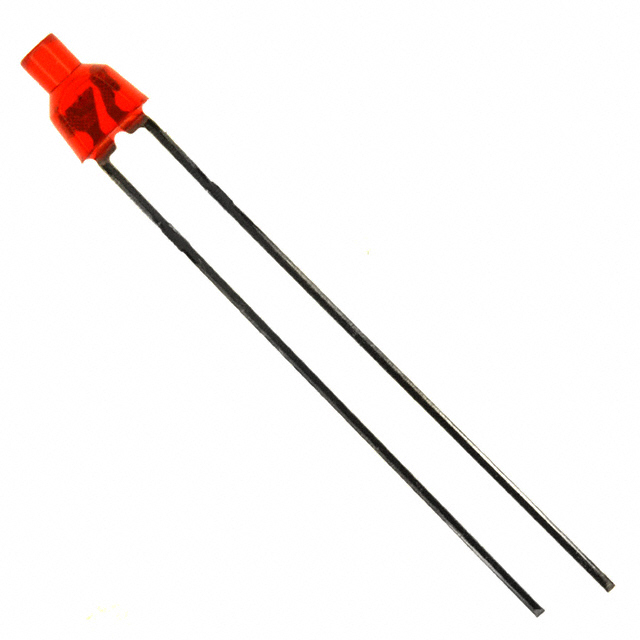

LED RED DIFF T-2MM TAPER T/H
Deep-Dive with AI
Search across all available documentation for this part.
SSL-LX20465ID
ActiveLumex Opto/Components Inc.
LED RED DIFF T-2MM TAPER T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSL-LX20465ID | SSL-LX20465 Series |
|---|---|---|
| Color | Red | Red, Green, Amber, Yellow |
| Configuration | Standard | Standard |
| Current - Test | 20 mA | 20 mA |
| Height (Max) [Max] | 5 mm | 5 mm |
| Lens Color | Red | Red, Green, Amber, Yellow |
| Lens Size [diameter] | 2 mm | 2 mm |
| Lens Transparency | Diffused | Diffused |
| Millicandela Rating | 25 mcd | 3 - 25 mcd |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Supplier Device Package | T-2mm Taper Body | T-2mm Taper Body |
| Viewing Angle | 70 ° | 70 ° |
| Voltage - Forward (Vf) (Typ) | 2 V | 2 - 2.2 V |
| Wavelength - Peak | 635 nm | 565 - 700 nm |
SSL-LX20465 Series
LED RED DIFF T-2MM TAPER T/H
| Part | Color | Viewing Angle | Wavelength - Peak | Lens Color | Lens Transparency | Configuration | Current - Test | Height (Max) [Max] | Lens Size [diameter] | Supplier Device Package | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSL-LX20465LID | Red | 70 ° | 635 nm | Red | Diffused | Standard | 20 mA | 5 mm | 2 mm | T-2mm Taper Body | 2 V | 25 mcd | Through Hole | Radial |
Lumex Opto/Components Inc. SSL-LX20465HD | Red | 70 ° | 700 nm | Red | Diffused | Standard | 20 mA | 5 mm | 2 mm | T-2mm Taper Body | 2 V | 3 mcd | Through Hole | Radial |
Lumex Opto/Components Inc. SSL-LX20465GD | Green | 70 ° | 565 nm | Green | Diffused | Standard | 20 mA | 5 mm | 2 mm | T-2mm Taper Body | 2.2 V | 10 mcd | Through Hole | Radial |
Lumex Opto/Components Inc. SSL-LX20465ID | Red | 70 ° | 635 nm | Red | Diffused | Standard | 20 mA | 5 mm | 2 mm | T-2mm Taper Body | 2 V | 25 mcd | Through Hole | Radial |
Lumex Opto/Components Inc. SSL-LX20465LGD | Green | 70 ° | 565 nm | Green | Diffused | Standard | 20 mA | 5 mm | 2 mm | T-2mm Taper Body | 2.2 V | 10 mcd | Through Hole | Radial |
Lumex Opto/Components Inc. SSL-LX20465LAD | Amber | 70 ° | 610 nm | Amber | Diffused | Standard | 20 mA | 5 mm | 2 mm | T-2mm Taper Body | 2 V | 10 mcd | Through Hole | Radial |
Lumex Opto/Components Inc. SSL-LX20465YD | Yellow | 70 ° | 585 nm | Yellow | Diffused | Standard | 20 mA | 5 mm | 2 mm | T-2mm Taper Body | 2.1 V | 10 mcd | Through Hole | Radial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.43 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| 5000 | $ 0.09 | |||
| 10000 | $ 0.08 | |||
| 25000 | $ 0.08 | |||
Description
General part information
SSL-LX20465 Series
Red LED Indication - Discrete 2V Radial
Documents
Technical documentation and resources
No documents available
