SSL-LX20465YD

Active

Lumex Opto/Components Inc.

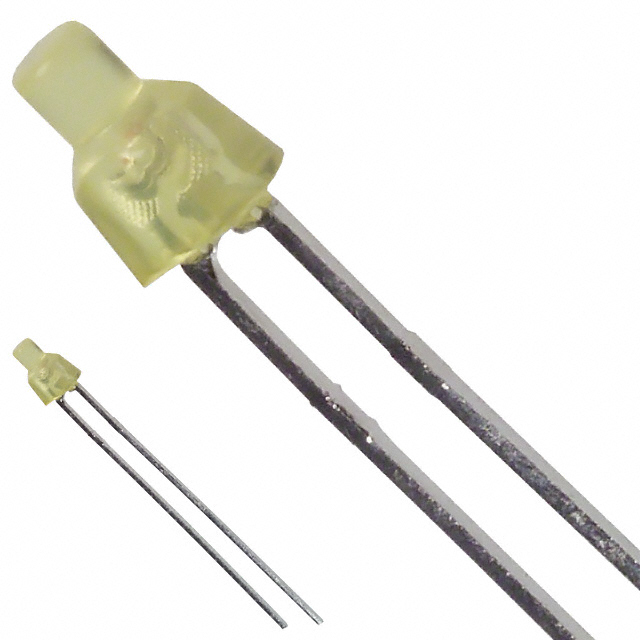

LED YELLOW DIFF T-2MM TAPER T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED YELLOW DIFF T-2MM TAPER T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow LED Indication - Discrete 2.1V Radial

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED RED DIFF T-2MM TAPER T/H

Part	Color	Viewing Angle	Wavelength - Peak	Lens Color	Lens Transparency	Configuration	Current - Test	Height (Max) [Max]	Lens Size [diameter]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Mounting Type	Package / Case
Lumex Opto/Components Inc. SSL-LX20465LID	Red	70 °	635 nm	Red	Diffused	Standard	20 mA	5 mm	2 mm	T-2mm Taper Body	2 V	25 mcd	Through Hole	Radial
Lumex Opto/Components Inc. SSL-LX20465HD	Red	70 °	700 nm	Red	Diffused	Standard	20 mA	5 mm	2 mm	T-2mm Taper Body	2 V	3 mcd	Through Hole	Radial
Lumex Opto/Components Inc. SSL-LX20465GD	Green	70 °	565 nm	Green	Diffused	Standard	20 mA	5 mm	2 mm	T-2mm Taper Body	2.2 V	10 mcd	Through Hole	Radial
Lumex Opto/Components Inc. SSL-LX20465ID	Red	70 °	635 nm	Red	Diffused	Standard	20 mA	5 mm	2 mm	T-2mm Taper Body	2 V	25 mcd	Through Hole	Radial
Lumex Opto/Components Inc. SSL-LX20465LGD	Green	70 °	565 nm	Green	Diffused	Standard	20 mA	5 mm	2 mm	T-2mm Taper Body	2.2 V	10 mcd	Through Hole	Radial
Lumex Opto/Components Inc. SSL-LX20465LAD	Amber	70 °	610 nm	Amber	Diffused	Standard	20 mA	5 mm	2 mm	T-2mm Taper Body	2 V	10 mcd	Through Hole	Radial
Lumex Opto/Components Inc. SSL-LX20465YD	Yellow	70 °	585 nm	Yellow	Diffused	Standard	20 mA	5 mm	2 mm	T-2mm Taper Body	2.1 V	10 mcd	Through Hole	Radial
