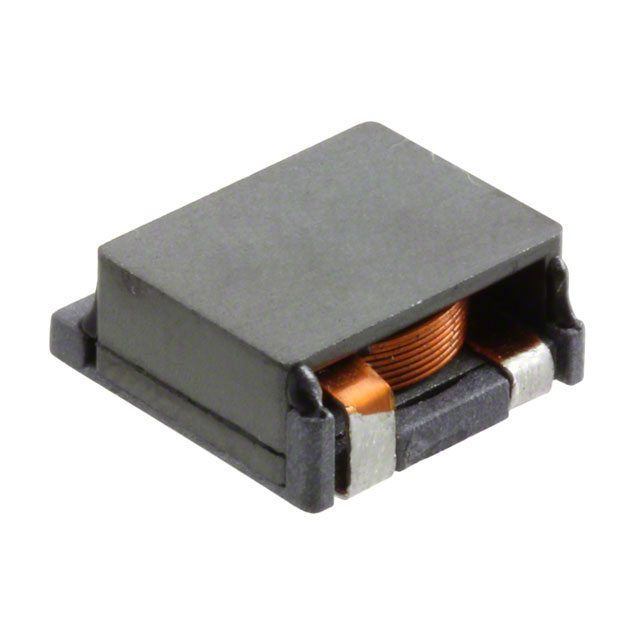

HM65-8R2LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 8.2UH 4.5A 11.4 MOHM

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

FIXED IND 8.2UH 4.5A 11.4 MOHM

Technical Specifications

Parameters and characteristics for this part

FIXED IND 8.2UH 4.5A 11.4 MOHM

Part	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Tolerance	Type	Mounting Type	Package / Case	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Shielding
TT Electronics/BI Magnetics HM65-8R2LFTR13	8.2 µH	-40 °C	130 °C	4.5 A	20 %	Wirewound	Surface Mount	Nonstandard	11.4 mOhm	100 kHz	0.22 in	5.6 mm	0.492 "	13.5 mm	0.531 in	12.5 mm	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8.2 µH Unshielded Wirewound Inductor 4.5 A 11.4mOhm Max Nonstandard
