12250-5150-00PL

Active

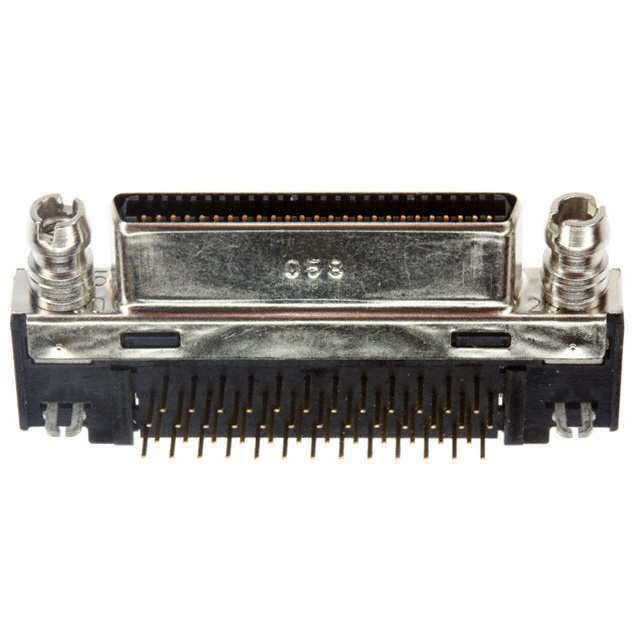

CONN RCPT 50POS R/A SOLDER

Search across all available documentation for this part.

Active

CONN RCPT 50POS R/A SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder

Technical documentation and resources

Specification	12250-5150-00PL	12250 Series

Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	8 çin	8 - 30 Áin
Contact Finish Thickness	0.203 çm	0.203 - 0.76 Ám
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	M2	Housing/Shell, M2
Flange Feature	-	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	50	50
Number of Rows	2	2
Termination	Solder	Solder

Part	Number of Positions	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Termination	Connector Style	Flange Feature	Flange Feature	Mounting Type	Contact Finish	Features
3M 12250-5110-00FR	50	Receptacle	2	0.76 Ám	30 Áin	Solder	Outer Shroud Contacts	Housing/Shell	2.6 M	Panel Mount, Right Angle, Through Hole	Gold	Board Lock, Shielded
3M 12250-5150-00PL	50	Receptacle	2	0.203 çm	8 çin	Solder	Outer Shroud Contacts	M2		Panel Mount, Right Angle, Through Hole	Gold	Board Lock, Shielded
