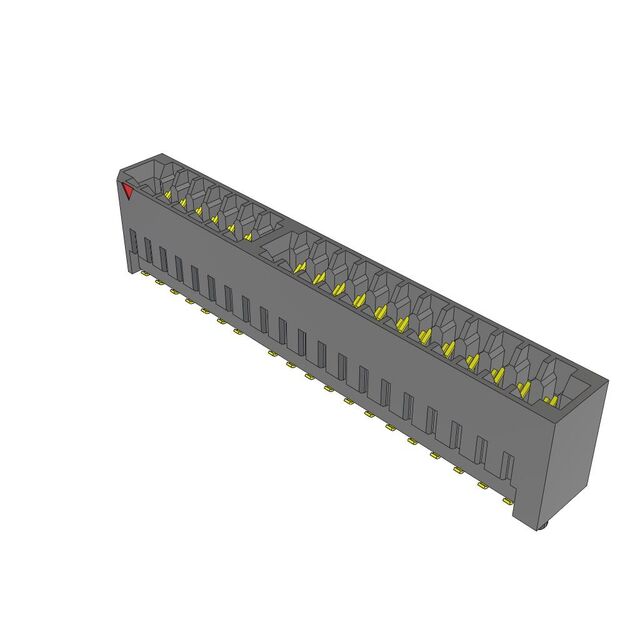

MEC2-20-01-L-DV

Active

Samtec Inc.

CONN EDGE DUAL FMALE 40POS 0.079

Search across all available documentation for this part.

Active

Samtec Inc.

CONN EDGE DUAL FMALE 40POS 0.079

Technical Specifications

Parameters and characteristics for this part

Standard Card Edge Connectors 2.00 mm Mini Edge Card Connector, Vertical

Part	Pitch [x]	Pitch [x]	Read Out	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Color	Material - Insulation	Number of Rows	Contact Type	Mounting Type	Card Thickness	Card Thickness	Features	Card Type	Contact Finish	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Termination Rows
Samtec Inc. MEC2-20-02-L-DV-WT	0.079 in	2 mm	Dual	40	Beryllium Copper	-55 °C	125 °C	Female	10 Áin	0.25 Ám	Solder	Natural	Liquid Crystal Polymer (LCP)	2	Cantilever	Surface Mount	0.093 in	2.36 mm	Board Guide Solder Retention	Non Specified - Dual Edge	Gold
Samtec Inc. MEC2-20-01-L-DV-K-TR	0.079 in	2 mm	Dual	40	Beryllium Copper	-55 °C	125 °C	Female	10 Áin	0.25 Ám	Solder	Black	Liquid Crystal Polymer (LCP)	2	Cantilever	Surface Mount	0.062 in	1.57 mm	Board Guide Pick and Place	Non Specified - Dual Edge	Gold	20	20	20
Samtec Inc. MEC2-20-01-L-DV	0.079 in	2 mm	Dual	40	Beryllium Copper	-55 °C	125 °C	Female	10 Áin	0.25 Ám	Solder	Black	Liquid Crystal Polymer (LCP)	2	Cantilever	Surface Mount	0.062 in	1.57 mm	Board Guide	Non Specified - Dual Edge	Gold
Samtec Inc. MEC2-20-02-L-TH1-NP-WT	0.079 in	2 mm	Dual	40	Beryllium Copper	-55 °C	125 °C	Female	10 Áin	0.25 Ám	Solder	Black	Liquid Crystal Polymer (LCP)	2	Cantilever	Through Hole	0.093 in	2.36 mm	Board Guide Solder Retention	Non Specified - Dual Edge	Gold				2
