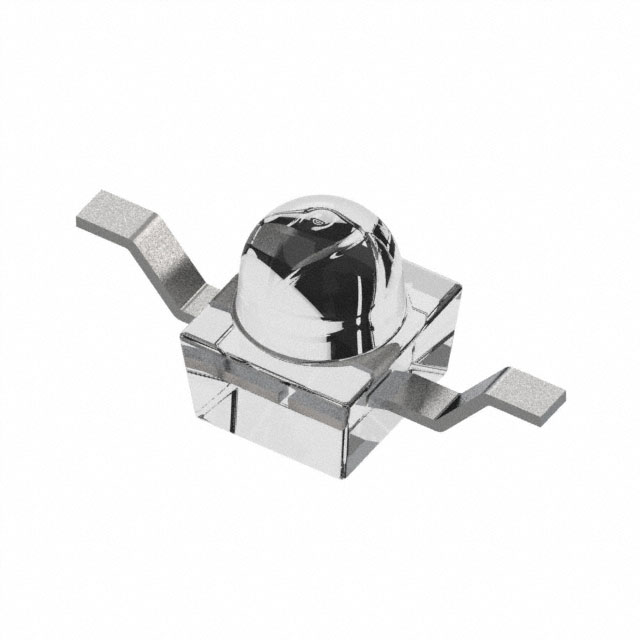

BL-XUB361-TR9

Active

American Bright Optoelectronics Corporation

LED RED-ORANGE CLR 2SMD BOT ENT

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED RED-ORANGE CLR 2SMD BOT ENT

Technical Specifications

Parameters and characteristics for this part

LED RED-ORANGE CLR 2SMD BOT ENT

Part	Height (Max) [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Color	Wavelength - Dominant	Supplier Device Package	Lens Style	Color	Lens Size [diameter]	Wavelength - Peak	Lens Transparency	Millicandela Rating	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]
American Bright Optoelectronics Corporation BL-XUB361-TR9	2.8 mm	20 mA	2.1 V	35 °	Colorless	632 nm	2-SMD	Round with Domed Top	Red-Orange	1.66 mm	645 nm	Clear	100 mcd	2-SMD, Z-Bend	Surface Mount, Bottom Entry	2.2 mm	2.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	30000	$ 0.10

General part information

Red-Orange 632nm LED Indication - Discrete 2.1V 2-SMD, Z-Bend
