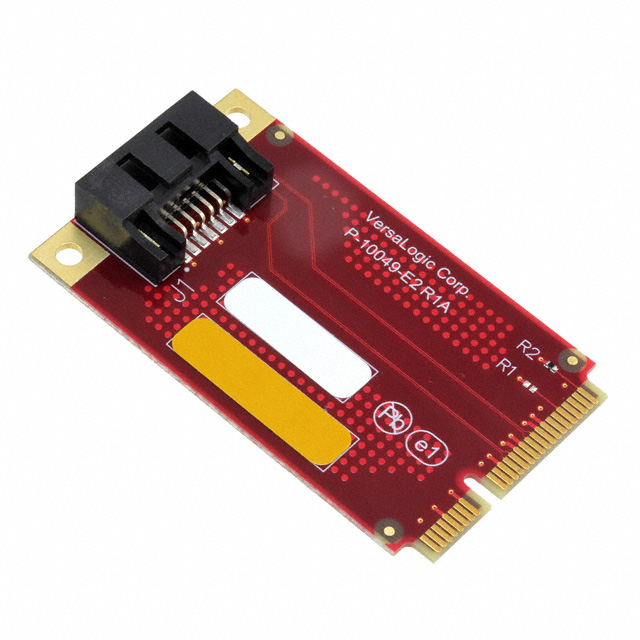

VL-MPES-S3E

Obsolete

VersaLogic Corporation

MINIPCIE EXPAN BOARD SATA

Search across all available documentation for this part.

Obsolete

VersaLogic Corporation

MINIPCIE EXPAN BOARD SATA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VL-MPES-S3E	VL-MPES Series

Accessory Type	-	Memory Module
Expansion Site/Bus	SATA	SATA
Form Factor	Mini PCIe module (full size)	Mini PCIe module (full size)
Function	SATA adapter	SATA adapter
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	30 mm	30 mm
Size / Dimension [x]	1.181 in	1.181 in
Size / Dimension [y]	50.95 mm	50.95 mm
Size / Dimension [y]	2.005 in	2.005 in
Specifications	-	4GB mSATA Drive, Mini PCIe Module, Industrial Temp

MINIPCIE EXPAN BOARD SATA

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Expansion Site/Bus	Operating Temperature [Max]	Operating Temperature [Min]	Function	Form Factor	Accessory Type	Specifications
VersaLogic Corporation VL-MPES-S3E	30 mm	50.95 mm	1.181 in	2.005 in	SATA	85 °C	-40 °C	SATA adapter	Mini PCIe module (full size)
VersaLogic Corporation VL-MPES-F1E16										Memory Module
VersaLogic Corporation VL-MPES-F1E4										Memory Module	4GB mSATA Drive, Industrial Temp, Mini PCIe Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MINIPCIE EXPAN BOARD SATA

Technical documentation and resources
