Q-2P04T0005.75M

Active

Amphenol Custom Cable

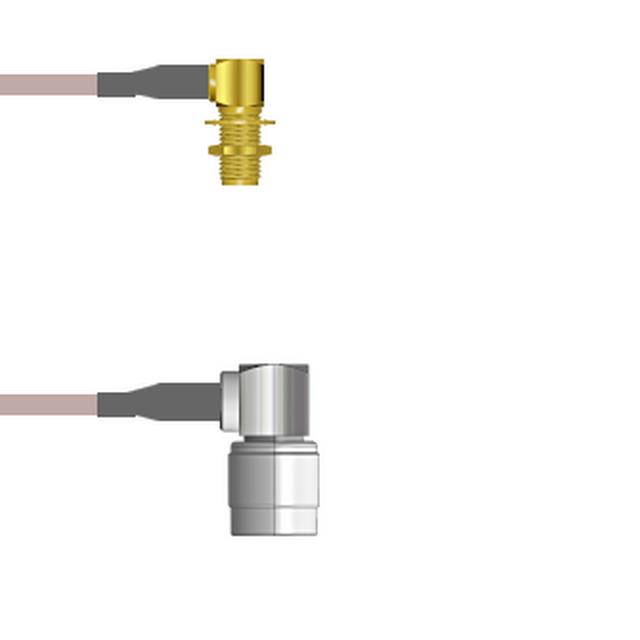

CBL ASSY SMA-TNC JACK-PLG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2P04T0005.75M

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC JACK-PLG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P04T0005.75M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-2P04T0 Series

Part	Color	Features	2nd Connector	Style	2nd Contact Gender	1st Connector Mounting Type	Cable Type	Length	Length	1st Contact Gender	Connector Impedance	Cable Impedance	Frequency - Max [Max]	1st Connector	Overall Impedance	1st Connector Mounting Feature	2nd Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2P04T0003.75M	Black	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-174	29.53 "	750 mm	Female	50 Ohms	50 Ohms	1 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)
Amphenol Custom Cable Q-2P04T0003060I	Black	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-174	5 '	1.5 m	Female	50 Ohms	50 Ohms	1 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-2P04T0003.25M	Black	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-174			Female	50 Ohms	50 Ohms	1 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)		9.843 "	250 mm
Amphenol Custom Cable Q-2P04T0003009I	Black	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-174	9 "	228.6 mm	Female	50 Ohms	50 Ohms	1 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)
Amphenol Custom Cable Q-2P04T0003001M	Black	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-174	39.4 in	1 m	Female	50 Ohms	50 Ohms	1 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-2P04T0005.75M	Copper	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-316	29.53 "	750 mm	Female	50 Ohms	50 Ohms	3 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)
Amphenol Custom Cable Q-2P04T0003072I	Black	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-174	72 in	1.8 m	Female	50 Ohms	50 Ohms	1 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-2P04T0003084I	Black	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-174	84 in	2.1 m	Female	50 Ohms	50 Ohms	1 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-2P04T0005.25M	Copper	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-316			Female	50 Ohms	50 Ohms	3 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)		9.843 "	250 mm
Amphenol Custom Cable Q-2P04T0003003M	Black	Shielded	TNC Plug Right Angle	SMA to TNC	Male	Panel Mount	RG-174	118.1 in	3 m	Female	50 Ohms	50 Ohms	1 GHz	Right Angle SMA Jack	50 Ohms	Bulkhead - Front Side Nut	Free Hanging (In-Line)	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 91.53
		25	$ 89.74
		50	$ 87.95
		100	$ 86.16
		250	$ 84.37

Description

General part information

Q-2P04T0 Series

Cable Assembly Coaxial SMA to TNC RG-316 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
