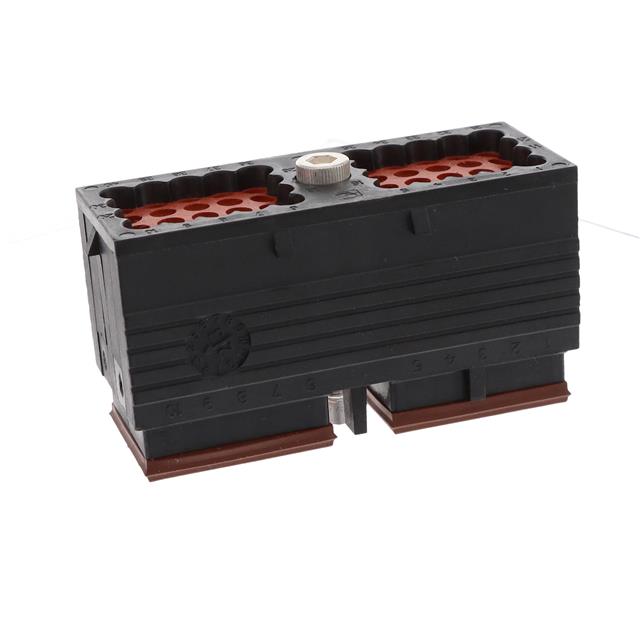

DRC18-40SAE

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 40POS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 40POS

Technical Specifications

Parameters and characteristics for this part

Specification	DRC18-40SAE

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Features	IP68, Cap (Cover), Dust, Reduced Wire Seals
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Color	Contact Type	Features	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Contact Termination	Note
TE Connectivity Raychem Cable Protection DRC18-40SAE	Black	Female Socket	Cap (Cover) Dust IP68 Reduced Wire Seals	40	Plug	-55 °C	125 °C	Free Hanging (In-Line)	Polyphenylene Sulfide (PPS) Glass Filled	Crimp	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Rectangular Connectors - Housings Plug Black
