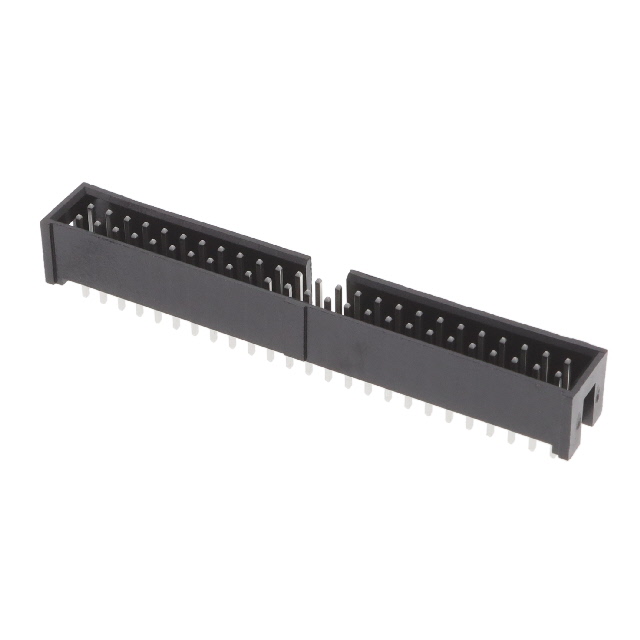

TSS-125-01-T-D

Active

Samtec Inc.

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTSS-105-05-L-D-RA Datasheet 02 .100" High-Temp Shrouded Terminal Strip, Cable Mate +1

TSS-125-01-T-D

Active

Samtec Inc.

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

DocumentsTSS-105-05-L-D-RA Datasheet 02 .100" High-Temp Shrouded Terminal Strip, Cable Mate +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSS-125-01-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.48 in
Overall Contact Length	12.19 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

TSS-125 Series

Part	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Material	Termination	Number of Positions	Contact Type	Fastening Type	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Material	Contact Shape	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Insulation Color	Features	Insulation Height [custom]	Insulation Height [custom]	Overall Contact Length	Overall Contact Length	Number of Rows	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSS-125-03-T-D	Header	2.54 mm	0.1 in	Tin	Phosphor Bronze	Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole	Board to Board Cable	105 ░C	-55 °C	14.35 mm	0.565 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot	0.35 in	8.89 mm	0.93 in	23.62 mm	2	Shrouded - 4 Wall
Samtec Inc. TSS-125-03-S-D	Header	2.54 mm	0.1 in	Tin	Phosphor Bronze	Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole	Board to Board Cable	125 °C	-55 °C	14.35 mm	0.565 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot	0.35 in	8.89 mm	0.93 in	23.62 mm	2	Shrouded - 4 Wall	Gold	30 Áin	0.76 Ám
Samtec Inc. TSS-125-04-F-D-RA	Header	2.54 mm	0.1 in	Tin	Phosphor Bronze	Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole Right Angle	Board to Board Cable	125 °C	-55 °C	3.3 mm	0.13 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot					2	Shrouded - 4 Wall	Gold	3 µin	0.076 µm	0.365 in	9.27 mm
Samtec Inc. TSS-125-01-S-D	Header	2.54 mm	0.1 in	Tin	Phosphor Bronze	Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole	Board to Board Cable	125 °C	-55 °C	2.92 mm	0.115 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot	0.35 in	8.89 mm	0.48 in	12.19 mm	2	Shrouded - 4 Wall	Gold	30 Áin	0.76 Ám			3 A
Samtec Inc. TSS-125-03-G-D-LL	Header	2.54 mm	0.1 in	Gold	Phosphor Bronze	Kinked Pin Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole	Board to Board Cable	125 °C	-55 °C	14.35 mm	0.565 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot	0.35 in	8.89 mm	0.93 in	23.62 mm	2	Shrouded - 4 Wall	Gold	10 çin	0.25 çm				3 µin	0.076 µm
Samtec Inc. TSS-125-05-G-D-RA	Header	2.54 mm	0.1 in	Gold	Phosphor Bronze	Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole Right Angle	Board to Board Cable	125 °C	-55 °C	5.84 mm	0.23 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot					2	Shrouded - 4 Wall	Gold	10 çin	0.25 çm	0.365 in	9.27 mm		3 µin	0.076 µm
Samtec Inc. TSS-125-01-T-D-LL	Header	2.54 mm	0.1 in	Tin	Phosphor Bronze	Kinked Pin Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole	Board to Board Cable	105 ░C	-55 °C	2.92 mm	0.115 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot	0.35 in	8.89 mm	0.48 in	12.19 mm	2	Shrouded - 4 Wall
Samtec Inc. TSS-125-01-T-D	Header	2.54 mm	0.1 in	Tin	Phosphor Bronze	Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole	Board to Board Cable	105 ░C	-55 °C	2.92 mm	0.115 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot	0.35 in	8.89 mm	0.48 in	12.19 mm	2	Shrouded - 4 Wall
Samtec Inc. TSS-125-05-S-D-RA	Header	2.54 mm	0.1 in	Tin	Phosphor Bronze	Solder	50	Male Pin	Push-Pull	0.1 in	2.54 mm	Through Hole Right Angle	Board to Board Cable	125 °C	-55 °C	5.84 mm	0.23 in	All	Polybutylene Terephthalate (PBT)	Square	6.35 mm	0.25 in	UL94 V-0	Black	Keying Slot					2	Shrouded - 4 Wall	Gold	30 Áin	0.76 Ám	0.365 in	9.27 mm
Samtec Inc. TSS-125-05-L-D-RA-08

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.56
		25	$ 3.22
		50	$ 2.99
		100	$ 2.85
		500	$ 2.66
