78RB08ST

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.15A 30V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SLIDE DIP SPST 0.15A 30V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Height Above Board	Height Above Board	Voltage Rating	Termination Style	Body Material	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Actuator Type	Electrical Life	Contact Material	Mounting Type	Actuator Level	Washable	Circuit	Length	Length	Contact Finish	Features
Grayhill Inc. 78RB08T	85 °C	-40 °C	8	0.265 in	6.73 mm	30 VDC	PC Pin	Thermoplastic	2000 Cycles	0.1 in	Full	2.54 mm	Slide (Standard)	2000 Steps	Copper Alloy	Through Hole	Flush, Recessed		SPST	22.35 mm	0.88 in	Gold
Grayhill Inc. 78RB08ST	85 °C	-40 °C	8	0.265 in	6.73 mm	30 VDC	PC Pin	Thermoplastic	2000 Cycles	0.1 in	Full	2.54 mm	Slide (Standard)	2000 Steps	Copper Alloy	Through Hole	Flush, Recessed		SPST	22.35 mm	0.88 in	Gold	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

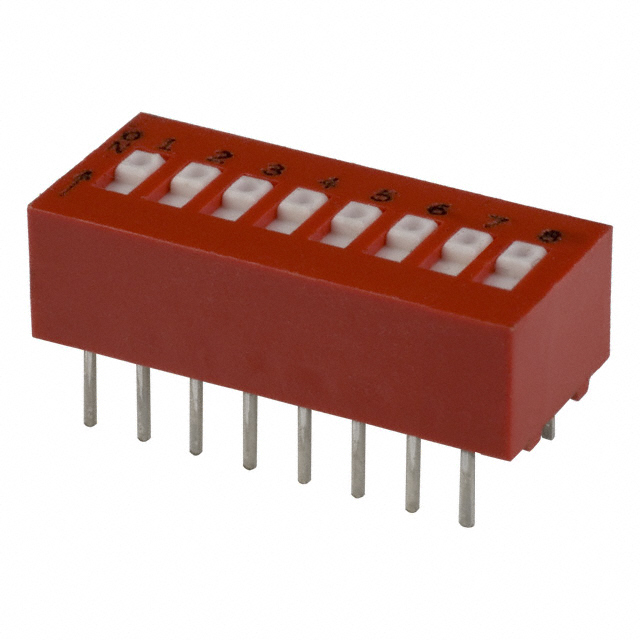

Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
